G70 European Type Ratchet Load Binder

•Comply with EU standard EN12195-3
•Compared with other tensioning methods, the efficiency by using ratchet load binder is increased by more than ten times.
•Use with Grade 80 chain rigging hardwares
•The matching chain length can be customized according to customer requirements
•The load binder must not be used for lifting, only for binding.
It is used for fixing and tightening the chain of steel products, military special equipment and other products. The operation is convenient and fast, and the tightening and loosening of the chain can be completed quickly.

SKU: 1.04.02

G70 European Type Ratchet Load Binder
Stock no.	Size (mm)	WLL (kn)	BL (kn)	Weight (kg)	Dimensions (mm)

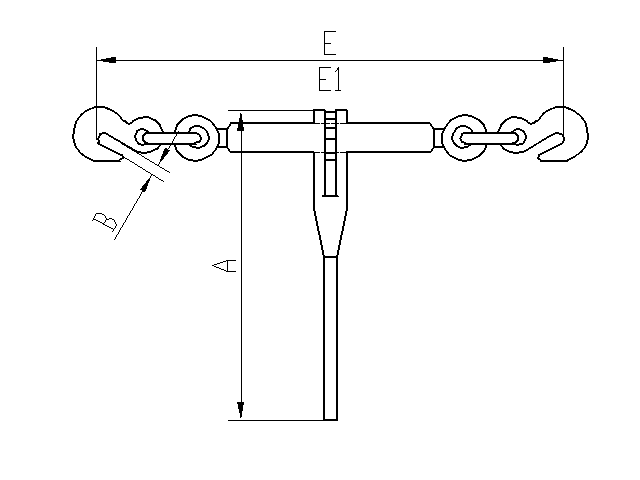

Stock no.	Size (mm)	WLL (kn)	BL (kn)	Weight (kg)	A	B	E	E1
HS1040201	6	1000	3500	1.69	226	10	415	515
HS1040202	8-10	2400	8600	4.56	387	12.7	575	735
HS1040203	10-13	4200	15000	5.32	387	16.5	595	765
HS1040204	13-16	6000	20800	7.05	387	18.5	690	840
