G291 Regular Nut Eye Bolt

•Material: Forged supper alloy steel-Quenched and Tempered
•Production: Drop forging
•The proof load is 2.5 times of Working load limit
•The breaking load is 4 times of Working load limit
•Breakage test is made for samples of each batch.
•100% MPI for crack detection.

SKU: 2.04.10

G291 Regular Nut Eye Bolt

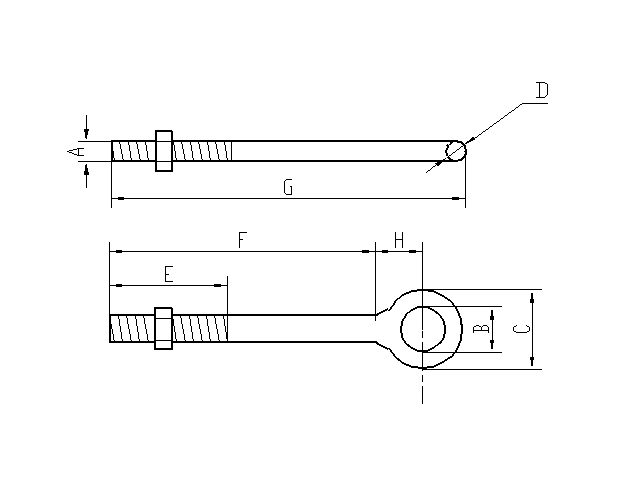

Stock no.	Size（AxF）（in）	WLL (lbs)	Weight 100pcs （lbs）	Dimensions（in）
Stock no.	Size（AxF）（in）	WLL (lbs)	Weight 100pcs （lbs）	A	B	C	D	E	F	G	H
HS2041001	1/4x1	650	8.20	0.25	0.50	1.00	0.25	1.50	2.00	3.06	0.56
HS2041002	1/4x4	650	11.70	0.25	0.50	1.00	0.25	2.50	4.00	5.06	0.56
HS2041003	5/16x2 1/4	1200	13.30	0.31	0.62	1.25	0.31	1.50	2.25	3.56	0.69
HS2041004	5/16x4 1/4	1200	25.00	0.31	0.62	1.25	0.31	2.50	4.25	5.56	0.69
HS2041005	3/8x2 1/2	1550	23.30	0.38	0.75	1.50	0.38	1.50	2.50	4.12	0.88
HS2041006	3/8x4 1/2	1550	29.50	0.38	0.75	1.50	0.38	2.50	4.50	6.12	0.88
HS2041007	3/8x6	1550	35.20	0.38	0.75	1.50	0.38	2.50	6.00	7.62	0.88
HS2041008	1/2x3 1/4	2600	50.30	0.50	1.00	2.00	0.50	1.50	3.25	5.38	1.12
HS2041009	1/2x6	2600	66.10	0.50	1.00	2.00	0.50	3.00	6.00	8.12	1.12
HS2041010	1/2x8	2600	82.00	0.50	1.00	2.00	0.50	3.00	8.00	10.12	1.12
HS2041011	1/2x10	2600	88.00	0.50	1.00	2.00	0.50	3.00	10.00	12.12	1.12
HS2041012	1/2x12	2600	114.20	0.50	1.00	2.00	0.50	3.00	12.00	14.12	1.12
HS2041013	5/8x4	5200	103.10	0.62	1.25	2.50	0.62	2.00	4.00	6.69	1.44
HS2041014	5/8x6	5200	118.20	0.62	1.25	2.50	0.62	3.00	6.00	8.69	1.44
HS2041015	5/8x8	5200	135.10	0.62	1.25	2.50	0.62	3.00	8.00	10.69	1.44
HS2041016	5/8x10	5200	153.60	0.62	1.25	2.50	0.62	3.00	10.00	12.69	1.44
HS2041017	5/8x12	5200	167.10	0.62	1.25	2.50	0.62	4.00	12.00	14.69	1.44
HS2041018	3/4x4 1/2	7200	168.60	0.75	1.50	3.00	0.75	2.00	4.50	7.69	1.69
HS2041019	3/4x6	7200	184.50	0.75	1.50	3.00	0.75	3.00	6.00	9.19	1.69
HS2041020	3/4x8	7200	207.90	0.75	1.50	3.00	0.75	3.00	8.00	11.19	1.69
HS2041021	3/4x10	7200	235.00	0.75	1.50	3.00	0.75	3.00	10.00	13.19	1.69
HS2041022	3/4x12	7200	257.50	0.75	1.50	3.00	0.75	4.00	12.00	15.19	1.69
HS2041023	3/4x15	7200	298.00	0.75	1.50	3.00	0.75	5.00	15.00	18.19	1.69
HS2041024	7/8x5	10600	270.00	0.88	1.75	3.50	0.88	2.50	5.00	8.75	2.00
HS2041025	7/8x8	10600	308.00	0.88	1.75	3.50	0.88	4.00	8.00	11.75	2.00
HS2041026	7/8x12	10600	400.00	0.88	1.75	3.50	0.88	4.00	12.00	15.75	2.00
HS2041027	1x6	13300	421.00	1.00	2.00	4.00	1.00	3.00	6.00	10.31	2.31
HS2041028	1x9	13300	468.50	1.00	2.00	4.00	1.00	4.00	9.00	13.31	2.31
HS2041029	1x12	13300	540.00	1.00	2.00	4.00	1.00	4.00	12.00	16.31	2.31
HS2041030	1x18	13300	650.00	1.00	2.00	4.00	1.00	7.00	18.00	22.31	2.31
HS2041031	1 1/4x8	21000	750.00	1.25	2.50	5.00	1.25	4.00	8.00	13.38	2.88
HS2041032	1 1/4x12	21000	900.00	1.25	2.50	5.00	1.25	4.00	12.00	17.38	2.88
HS2041033	1 1/4x20	21000	1210.00	1.25	2.50	5.00	1.25	6.00	20.00	25.38	2.88
