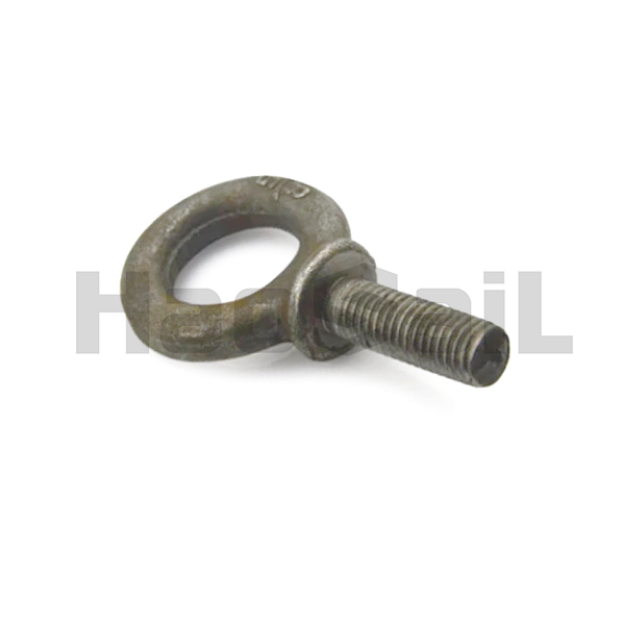

G279 Shoulder Type Machinery Eye Bolt

•Material: Forged supper alloy steel-Quenched and Tempered
•Production: Drop forging
•The proof load is 2.5 times of Working load limit
•The breaking load is 4 times of Working load limit
•Breakage test is made for samples of each batch.
•100% MPI for crack detection.

SKU: 2.04.09

G279 Shoulder Type Machinery Eye Bolt

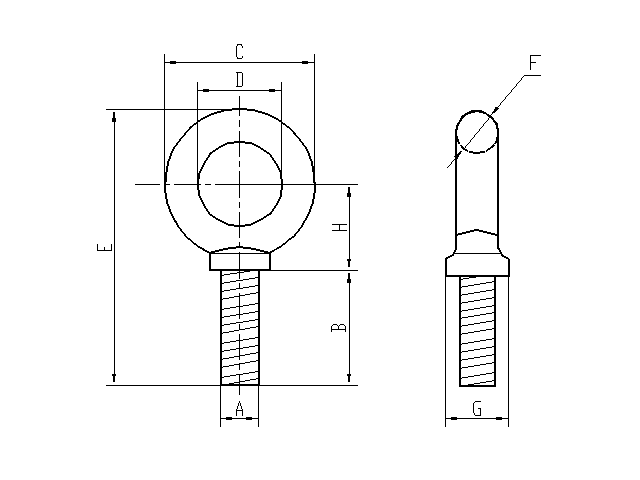

Stock no.	Size（AxB）（in）	WLL ( lbs)	Weight 100pcs （lbs）	Dimensions（in）
Stock no.	Size（AxB）（in）	WLL ( lbs)	Weight 100pcs （lbs）	A	B	C	D	E	F	G	H
HS2040901	1/4x1	650	5	0.25	1.02	1.13	0.75	2.29	0.19	0.53	0.77
HS2040902	5/16x1-1/8	1200	9	0.31	1.15	1.38	0.88	2.74	0.25	0.59	0.95
HS2040903	3/8x1-1/4	1550	15	0.38	1.27	1.62	1.00	3.07	0.31	0.66	1.05
HS2040904	1/2x1-1/2	2600	28	0.50	1.53	1.95	1.19	3.70	0.38	0.91	1.27
HS2040905	5/8x1-3/4	5200	55	0.63	1.79	2.38	1.38	4.45	0.50	1.13	1.53
HS2040906	3/4x2	7200	96	0.75	2.05	2.76	1.50	5.07	0.63	1.38	1.71
HS2040907	7/8x2-1/4	10600	154	0.88	2.31	3.25	1.75	5.87	0.75	1.56	2.00
HS2040908	1x2-1/2	13300	238	1.00	2.57	3.76	2.00	6.66	0.88	1.81	2.09
HS2040909	1-1/4x3	21000	399	1.25	3.09	4.50	2.50	7.95	1.00	2.28	2.73
HS2040910	1-1/2x3-1/2	24000	720	1.50	3.60	5.50	3.00	9.49	1.25	2.75	3.28
