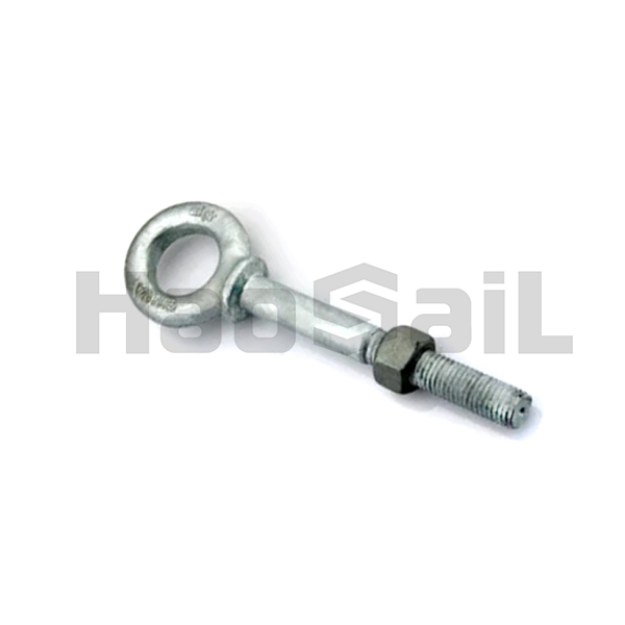

G277 Shoulder Nut Eye Bolt

•Material: Forged supper alloy steel-Quenched and Tempered
•Production: Drop forging
•The proof load is 2.5 times of Working load limit
•The breaking load is 4 times of Working load limit
•Breakage test is made for samples of each batch.
•100% MPI for crack detection.

SKU: 2.04.08

style="width: 100%; border-collapse: collapse; margin-left: auto; margin-right: auto; overflow-x: auto;"

G277 Shoulder Nut Eye Bolt
Stock no.	Size（AxF）（in）	WLL (lbs)	Weight 100pcs （lbs）	Dimensions（in）

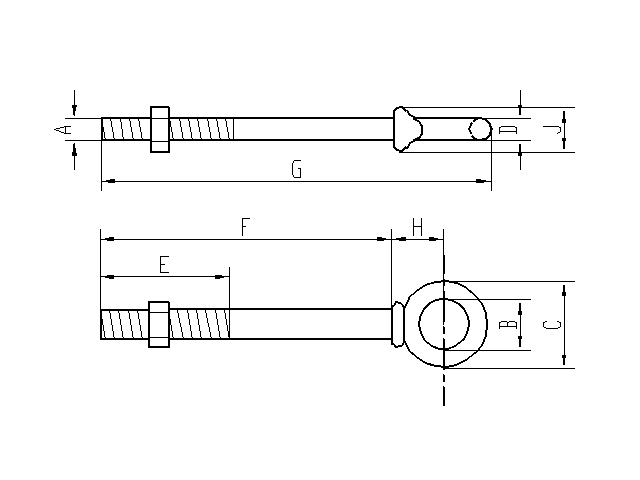

Stock no.	Size（AxF）（in）	WLL (lbs)	Weight 100pcs （lbs）	A	B	C	D	E	F	G	H	J
HS2040801	1/4x2	500	6.61	0.25	0.50	0.88	0.19	1.50	2.00	2.94	0.50	0.47
HS2040802	1/4x4	500	9.61	0.25	0.50	0.88	0.19	2.50	4.00	4.94	0.50	0.47
HS2040803	5/16x2 1/4	800	12.50	0.31	0.62	1.12	0.25	1.50	2.25	3.50	0.69	0.56
HS2040804	5/16x4 1/4	800	18.75	0.31	0.62	1.12	0.25	2.50	4.25	5.50	0.69	0.56
HS2040805	3/8x2 1/2	1200	21.40	0.38	0.75	1.38	0.31	1.50	2.50	3.97	0.78	0.66
HS2040806	3/8x4 1/2	1200	25.30	0.38	0.75	1.38	0.31	2.50	4.50	5.97	0.78	0.66
HS2040807	1/2x3 1/4	2200	42.60	0.50	1.00	1.75	0.38	1.50	3.25	5.12	1.00	0.91
HS2040808	1/2x6	2200	56.80	0.50	1.00	1.75	0.38	3.00	6.00	7.88	1.00	0.91
HS2040809	5/8x4	3500	68.60	0.62	1.25	2.25	0.50	2.00	4.00	6.44	1.31	1.12
HS2040810	5/8x6	3500	102.40	0.62	1.25	2.25	0.50	3.00	6.00	8.44	1.31	1.12
HS2040811	3/4x4 1/2	5200	144.50	0.75	1.50	2.75	0.62	2.00	4.50	7.44	1.56	1.38
HS2040812	3/4x6	5200	167.50	0.75	1.50	2.75	0.62	3.00	6.00	8.94	1.56	1.38
HS2040813	7/8x5	7200	225.00	0.88	1.75	3.25	0.75	2.50	5.00	8.47	1.84	1.56
HS2040814	1x6	10000	366.30	1.00	2.00	3.75	0.88	3.00	6.00	9.97	2.09	1.81
HS2040815	1x9	10000	422.50	1.00	2.00	3.75	0.88	4.00	9.00	12.97	2.09	1.81
HS2040816	1 1/4x8	15200	650.00	1.25	2.50	4.50	1.00	4.00	8.00	12.72	2.47	2.28
HS2040817	1 1/4x12	15200	795.00	1.25	2.50	4.50	1.00	4.00	12.00	16.72	2.47	2.28
HS2040818	1 1/2x15	21400	1425	1.50	3.00	5.50	1.25	6.00	15.00	20.75	3.00	2.75
