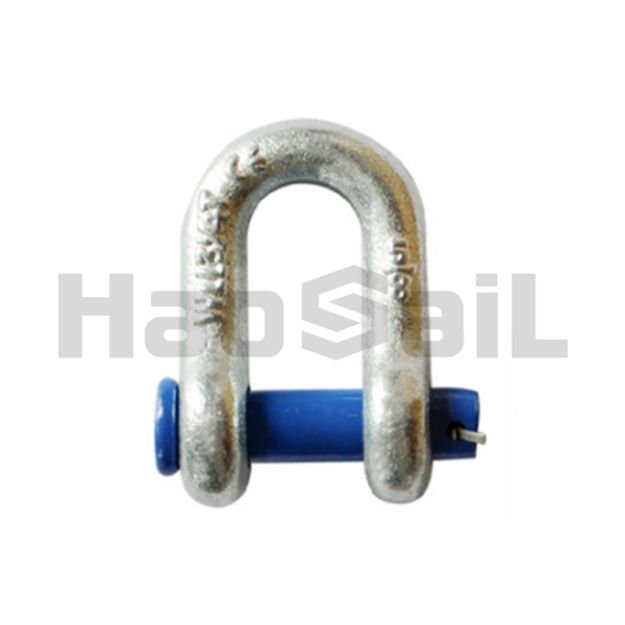

G215 D type shackle

•Material: High quality carbon steel/alloy
•Production technology: Die Forging--Quenched and Tempered
•Safety factor: 4:1/6:1
•The proof load is 2 times of Working load limit
•The breaking load is 4 times of Working load limit
•Breakage test is made for samples of each batch.
•100% MPI for crack detection.

SKU: 2.01.04

G215 D Type Shackle

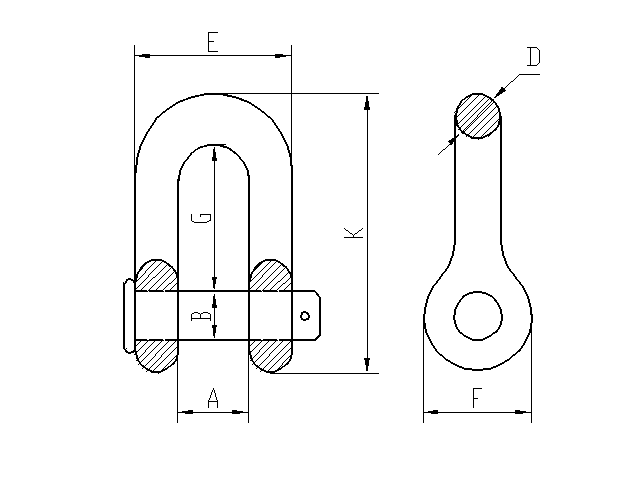

Stock no.	Size (in)	WLL (t)	Dimensions(in)							Weight (lbs)
Stock no.	Size (in)	WLL (t)	A	B	D	E	F	G	K	Weight (lbs)
HS2010401	1/4	1/2	0.47	0.31	0.25	0.97	0.62	0.97	1.59	0.10
HS2010402	5/16	3/4	0.53	0.38	0.31	1.15	0.75	1.07	1.91	0.18
HS2010403	3/8	1	0.66	0.44	0.38	1.42	0.92	1.28	2.31	0.25
HS2010404	7/16	1 1/2	0.75	0.50	0.44	1.63	1.06	1.48	2.67	0.40
HS2010405	1/2	2	0.81	0.63	0.50	1.81	1.18	1.66	3.03	0.50
HS2010406	5/8	3 1/4	1.06	0.75	0.63	2.32	1.50	2.04	3.76	1.21
HS2010407	3/4	4 3/4	1.25	0.88	0.75	2.75	1.81	2.40	4.53	2.00
HS2010408	7/8	6 1/2	1.44	1.00	0.88	3.20	2.10	2.86	5.33	3.28
HS2010409	1	8 1/2	1.69	1.13	1.00	3.69	2.38	3.24	5.94	4.75
HS2010410	1 1/8	9 1/2	1.81	1.25	1.13	4.07	2.69	3.61	6.78	6.30
HS2010411	1 1/4	12	2.03	1.38	1.25	4.53	3.00	3.97	7.50	9.00
HS2010412	1 3/8	13 1/2	2.25	1.50	1.38	5.01	3.31	4.43	8.28	12.00
HS2010413	1 1/2	17	2.38	1.62	1.50	5.38	3.62	4.87	9.05	16.15
HS2010414	1 3/4	25	2.88	2.12	1.75	6.38	4.19	5.78	10.97	29.96
HS2010415	2	32	3.25	2.00	2.00	7.25	5.00	6.77	12.74	43.25
HS2010416	2 1/2	55	4.12	2.62	2.63	9.38	5.68	8.07	14.85	-
