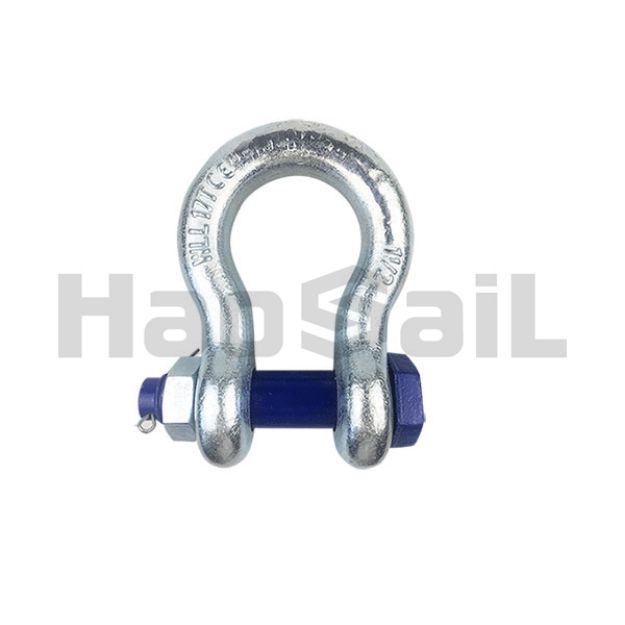

G2130 US Type Bow Shackles with Safety Bolt

•Material: High quality carbon steel/alloy
•Production technology: Die Forging--Quenched and Tempered
•Safety factor: 4:1/6:1
•The proof load is 2 times of Working load limit
•The breaking load is 4 times of Working load limit
•Breakage test is made for samples of each batch.
•100% MPI for crack detection.

SKU: 2.01.05

style="width: 100%; border-collapse: collapse; margin-left: auto; margin-right: auto; overflow-x: auto;"

G2130 US Type Bow Shackles with Safety Bolt

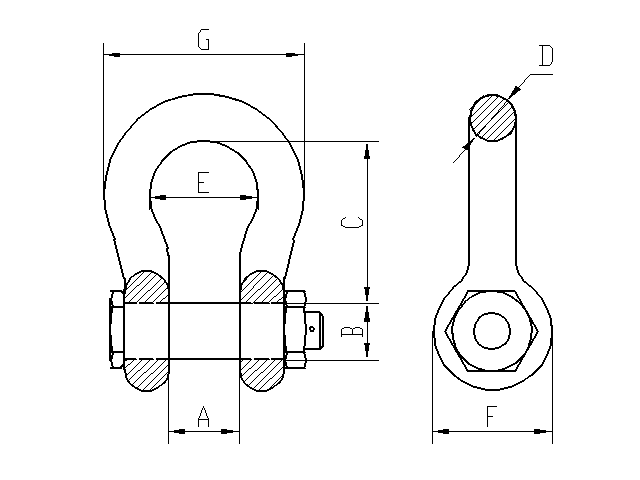

Stock no.	Size（in）	WLL(t)	A(mm)	B(mm)	C(mm)	D(mm)	E(mm)	F(mm)	G(mm)	Weight(kg)
HS2010501	3/16	0.33	9.7	6.4	22.4	4.9	15.2	14.2	24.9	0.03
HS2010502	1/4	0.5	11.9	7.9	28.7	6.4	19.8	15.5	32.5	0.05
HS2010503	5/16	0.75	13.5	9.7	31	7.9	21.3	19.1	37.3	0.1
HS2010504	3/8	1	16.8	11.2	36.6	9.7	26.2	23.1	45.2	0.15
HS2010505	7/16	1.5	19.1	12.7	42.9	11.2	29.5	26.9	51.5	0.22
HS2010506	1/2	2	20	16	46	12	33	29	58	0.35
HS2010507	5/8	3.25	27	19	61	16	43	38	75	0.63
HS2010508	3/4	4.75	32	22	71.5	19	51	46	89	1
HS2010509	7/8	6.5	38	25	84	22	58	53	102	1.75
HS2010510	1	8.5	43	28	95	25.5	68	60.5	119	2.4
HS2010511	1 1/8	9.5	48	32	108	29	74	68.5	134	3.37
HS2010512	1 1/4	12	50	36	119	32	81	76	145	4.75
HS2010513	1 3/8	13.5	55	38	133	35	90	84	160	6.2
HS2010514	1 1/2	17	60.5	42	146	38	97	92	173	8.3
HS2010515	1 3/4	25	73	50	178	44.5	127	106.5	216	13.3
HS2010516	2	35	83	56	197	51	146	122	248	19.1
HS2010517	2 1/2	55	103	70	267	63	181	144.5	307	36.9
HS2010518	3	85	135	80	325	80	210	165	370	65
HS2010519	3 1/2	120	145	95.5	410	95	215	198	405	110
