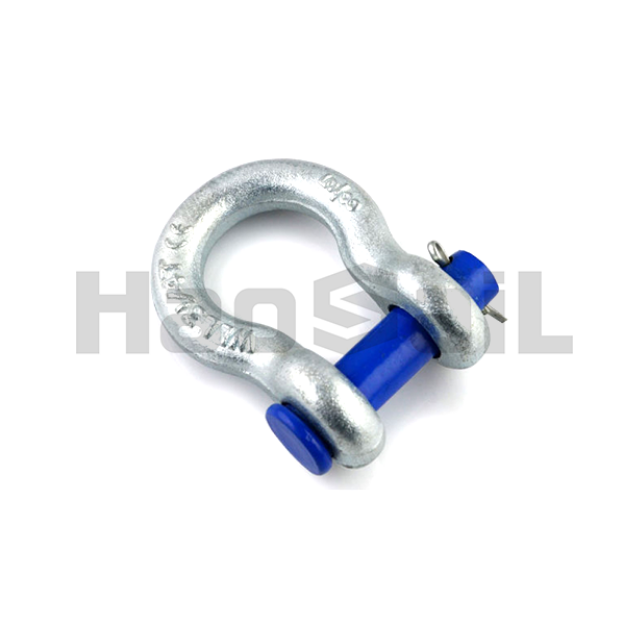

G213 Bow type shackle

•Material: High quality carbon steel/alloy
•Production technology: Die Forging--Quenched and Tempered
•Safety factor: 4:1/6:1
•The proof load is 2 times of Working load limit
•The breaking load is 4 times of Working load limit
•Breakage test is made for samples of each batch.
•100% MPI for crack detection.

SKU: 2.01.03

style="width: 100%; border-collapse: collapse; margin-left: auto; margin-right: auto; overflow-x: auto;"

G213 Bow Type Shackle
Stock no.	Size (in)	WLL (t)	Dimensions(in)									Weight （Ibs）

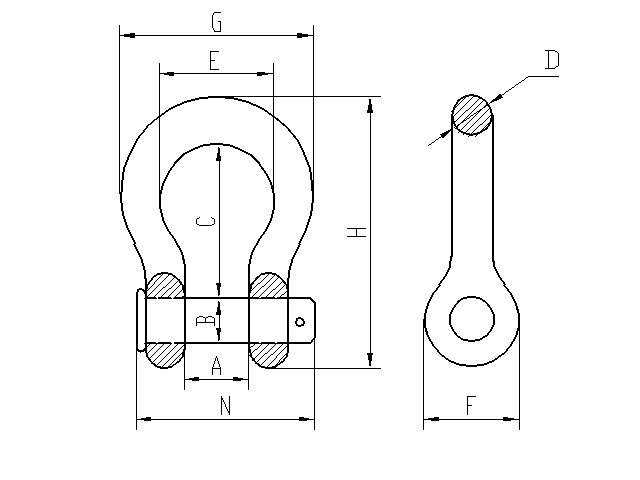

Stock no.	Size (in)	WLL (t)	A	B	C	D	E	F	G	H	N	Weight （Ibs）
HS2010301	1/4	1/2	0.47	0.31	1.13	0.25	0.78	0.61	1.28	1.84	1.34	0.13
HS2010302	5/16	3/4	0.53	0.38	1.22	0.31	0.84	0.75	1.47	2.09	1.59	0.18
HS2010303	3/8	1	0.66	0.44	1.44	0.38	1.03	0.91	1.78	2.49	1.86	0.29
HS2010304	7/16	1 1/2	0.75	0.50	1.69	0.44	1.16	1.06	2.03	2.91	2.13	0.38
HS2010305	1/2	2	0.81	0.63	1.88	0.50	1.31	1.19	2.31	3.28	2.38	0.71
HS2010306	5/8	3 1/4	1.06	0.75	2.38	0.63	1.69	1.50	2.94	4.19	2.91	1.50
HS2010307	3/4	4 3/4	1.25	0.88	2.81	0.75	2.00	1.81	3.50	4.97	3.44	2.32
HS2010308	7/8	6 1/2	1.44	1.00	3.31	0.88	2.28	2.09	4.03	5.83	3.81	3.49
HS2010309	1	8 1/2	1.69	1.13	3.75	1.00	2.69	2.38	4.69	6.56	4.53	5.00
HS2010310	1 1/8	9 1/2	1.81	1.25	4.25	1.16	2.91	2.69	5.16	7.47	5.13	6.97
HS2010311	1 1/4	12	2.03	1.38	4.69	1.29	3.25	3.00	5.75	8.25	5.50	9.75
HS2010312	1 3/8	13 1/2	2.25	1.50	5.25	1.42	3.63	3.31	6.38	9.16	6.13	13.25
HS2010313	1 1/2	17	2.38	1.63	5.75	1.54	3.88	3.63	6.88	10.00	6.50	17.25
HS2010314	1 3/4	25	2.88	2.00	7.00	1.84	5.00	4.19	8.86	12.34	7.75	29.46
HS2010315	2	35	3.25	2.25	7.75	2.08	5.75	4.81	9.97	13.68	8.75	45.75
HS2010316	2 1/2	55	4.13	2.75	10.50	2.71	7.25	5.69	12.87	17.84	-	-
