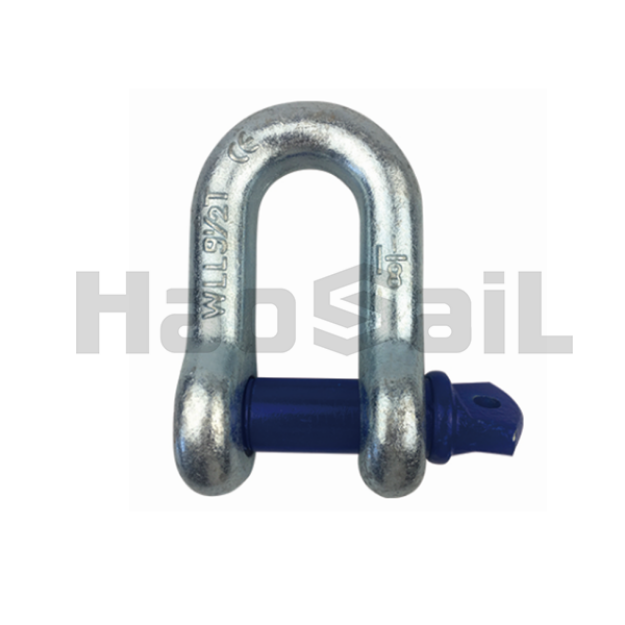

G210 US Type D Shackle with Screw Pin

•Material: High quality carbon steel/alloy
•Production technology: Die Forging--Quenched and Tempered
•Safety factor: 4:1/6:1
•The proof load is 2 times of Working load limit
•The breaking load is 4 times of Working load limit
•Breakage test is made for samples of each batch.
•100% MPI for crack detection.

SKU: 2.01.02

style="width: 100%; border-collapse: collapse; margin-left: auto; margin-right: auto; overflow-x: auto;"

G210 US Type D Shackle with Screw Pin

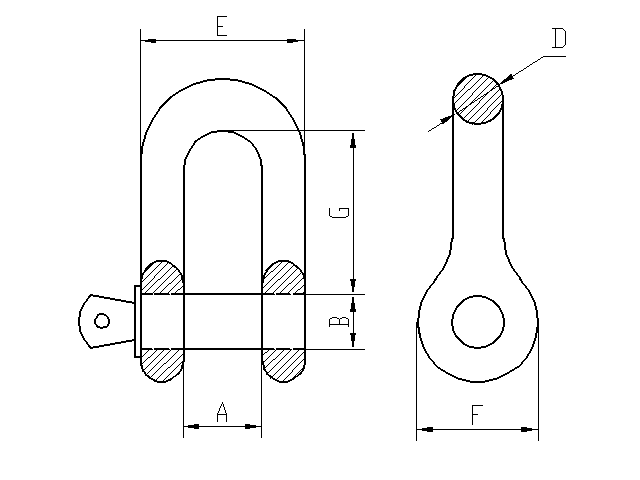

Stock no.	Size（in）	WLL(t)	A(mm)	B(mm)	D(mm)	E(mm)	F(mm)	G(mm)	Weight(kg)
HS2010201	1/4	0.5	11.9	7.85	6.35	24.6	15.5	22.4	0.05
HS2010202	5/16	0.75	13.5	9.65	7.85	29.5	19.1	26.2	0.08
HS2010203	3/8	1	16.8	11.2	9.65	35.8	23.1	31.8	0.13
HS2010204	7/16	1.5	19.1	12.7	11.2	41.4	26.9	36.6	0.2
HS2010205	1/2	2	20	16	12	46	29	42	0.25
HS2010206	5/8	3.25	27	19	16	59	38	51	0.53
HS2010207	3/4	4.75	33	22	18.5	70	46	60.5	0.92
HS2010208	7/8	6.5	37	25	22.5	82	53	71.5	1.4
HS2010209	1	8.5	43	28	24.5	92	60.5	81	2
HS2010210	1 1/8	9.5	48	32	29	106	68.5	91	2.86
HS2010211	1 1/4	12	50	36	32	114	76	100	4
HS2010212	1 3/8	13.5	55	38	35	125	84	111	5.2
HS2010213	1 1/2	17	60.5	42	38	136.5	92	122	7.15
HS2010214	1 3/4	25	73	50	44	161	106.5	146	11
HS2010215	2	35	83	56	51	185	122	171.5	16.4
HS2010216	2 1/2	55	103	70	63	229	144.5	203	31.5
HS2010217	3	85	130	80	80	278	165	240	51.5
HS2010218	3 1/2	120	135	95.5	95	325	200	280	88.5
