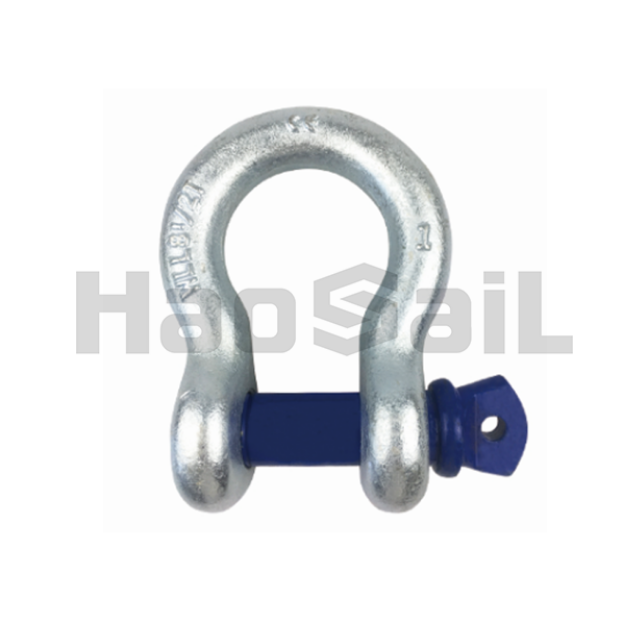

G209 US Type Bow Shackle with Screw Pin

•Material: High quality carbon steel/alloy
•Production technology: Die Forging--Quenched and Tempered
•Safety factor: 4:1/ 6:1
•The proof load is 2 times of Working load limit
•The breaking load is 4 times of Working load limit
•Breakage test is made for samples of each batch.
•100% MPI for crack detection.

SKU: 2.01.01

style="width: 100%; border-collapse: collapse; margin-left: auto; margin-right: auto; overflow-x: auto;"

G209 US Type Bow Shackle with Screw Pin

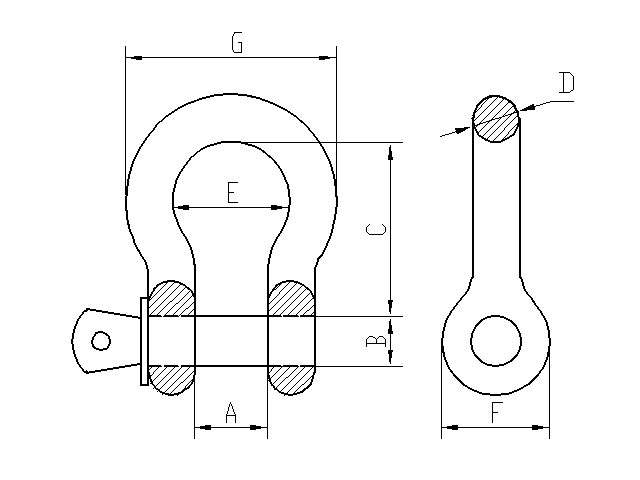

Stock no.	Size（in）	WLL(t)	A(mm)	B(mm)	C(mm)	D(mm)	E(mm)	F(mm)	G(mm)	Weight(kg)
HS2010101	3/16	0.33	9.65	6.35	22.4	4.85	15.2	14.2	24.9	0.03
HS2010102	1/4	0.5	11.9	7.85	28.7	6.35	19.8	15.5	32.5	0.05
HS2010103	5/16	0.75	13.5	9.65	31	7.85	21.3	19.1	37.3	0.09
HS2010104	3/8	1	16.8	11.2	36.6	9.65	26.2	23.1	45.2	0.14
HS2010105	7/16	1.5	19.1	12.7	42.9	11.2	29.5	26.9	51.5	0.17
HS2010106	1/2	2	20	16	45	12	33	29	58	0.3
HS2010107	5/8	3.25	27	19	61	16	43	38	75	0.6
HS2010108	3/4	4.75	32	22	71.5	19	51	46	89	1
HS2010109	7/8	6.5	38	25	84	22	58	53	102	1.44
HS2010110	1	8.5	43	28	95	25.5	68	60.5	119	2.26
HS2010111	1 1/8	9.5	48	32	108	29	74	68.5	134	3.15
HS2010112	1 1/4	12	50	36	119	32	81	76	145	4.4
HS2010113	1 3/8	13.5	55	38	133	35	90	84	160	6.03
HS2010114	1 1/2	17	60.5	42	146	38	97	92	173	7.5
HS2010115	1 3/4	25	73	50	178	44.5	127	106.5	216	12.5
HS2010116	2	35	83	56	197	51	146	122	248	18.2
HS2010117	2 1/2	55	103	70	267	63	181	144.5	307	34.8
HS2010118	3	85	135	80	325	80	210	165	370	62.5
HS2010119	3 1/2	120	145	95.5	410	95	215	198	405	106
