G100 Clevis Chain Clutch with Pin

1.03.13

•Material: High strength and high toughness alloy steel
•100% tested at 2.5 times of working load limit
•100% MPI for crack detection
•Breaking load test for samples of each batch
•Fatigue test at 1.5 times of Working Load Limit for 20000 cycles for samples of each batch
•100% Eddy current inspection for flaw detection of the pin
•The G100 Clevis chain clutch with pin is suitable for G100 chain

G100 Clevis Forest Hook

1.03.14

•Material: High strength and high toughness alloy steel
•100% tested at 2.5 times of working load limit
•100% MPI for crack detection
•Breaking load test for samples of each batch
•Fatigue test at 1.5 times of Working Load Limit for 20000 cycles for samples of each batch
•100% Eddy current inspection for flaw detection of the pin
•The G100 Clevis forest hook is suitable for G100 chain

G100 Clevis Self-Locking Hook

1.03.09

•Material: High strength and high toughness alloy steel
•100% tested at 2.5 times of working load limit
•100% MPI for crack detection
•Breaking load test for samples of each batch
•Fatigue test at 1.5 times of Working Load Limit for 20000 cycles for samples of each batch
•100% Eddy current inspection for flaw detection of the pin
•The G100 Clevis Self-locking Hook is suitable for G100 chain

G100 Clevis Shortening Grab Hook

1.03.12

•Material: High strength and high toughness alloy steel
•100% tested at 2.5 times of working load limit
•100% MPI for crack detection
•Breaking load test for samples of each batch
•Fatigue test at 1.5 times of Working Load Limit for 20000 cycles for samples of each batch
•100% Eddy current inspection for flaw detection of the pin
•The G100 Clevis shortening grab hook is suitable for G100 chain

G100 Clevis Sling Hook with Cast Latch

1.03.07

•Material: High strength and high toughness alloy steel
•100% tested at 2.5 times of working load limit
•100% MPI for crack detection
•Breaking load test for samples of each batch
•Fatigue test at 1.5 times of Working Load Limit for 20000 cycles for samples of each batch
•100% Eddy current inspection for flaw detection of the pin
•The G100 Clevis Sling Hook with Latch is suitable for G100 chain

G100 Connecting Link

1.03.03

•Material: High strength and high toughness alloy steel
•100% tested at 2.5 times of working load limit
•100% MPI for crack detection
•Breaking load test for samples of each batch
•Fatigue test at 1.5 times of Working Load Limit for 20000 cycles for samples of each batch
•100% Eddy current inspection for flaw detection of the pin
•The G100 connecting link is suitable for G100 chain

G100 Eye Self-Locking Hook

1.03.08

•Material: High strength and high toughness alloy steel
•100% tested at 2.5 times of working load limit
•100% MPI for crack detection
•Breaking load test for samples of each batch
•Fatigue test at 1.5 times of Working Load Limit for 20000 cycles for samples of each batch
•The G100 Eye self-locking hook is suitable for G100 chain

G100 Eye Shortening Grab Hook

1.03.11

•Material: High strength and high toughness alloy steel
•100% tested at 2.5 times of working load limit
•100% MPI for crack detection
•Breaking load test for samples of each batch
•Fatigue test at 1.5 times of Working Load Limit for 20000 cycles for samples of each batch
•The G100 Eye shortening grab hook is suitable for G100 chain

G100 Eye Sling Hook with Cast Latch

1.03.06

•Material: High strength and high toughness alloy steel
•100% tested at 2.5 times of working load limit
•100% MPI for crack detection
•Breaking load test for samples of each batch
•Fatigue test at 1.5 times of Working Load Limit for 20000 cycles for samples of each batch
•The G100 Eye sling hook with cast latch is suitable for G100 chain

G100 Large Opening Eye Sling Hook

1.03.15

•Material: High strength and high toughness alloy steel
•100% tested at 2.5 times of working load limit
•100% MPI for crack detection
•Breaking load test for samples of each batch
•Fatigue test at 1.5 times of Working Load Limit for 20000 cycles for samples of each batch
•The G100 Large opening eye sling hook is suitable for G100 chain

G100 Master Link

1.03.01

•Material: Forged supper alloy steel
•100% tested at 2.5 times of working load limit
•100% MPI for crack detection
•Each batch of products shall be sampled for breaking load test
•Minimum breaking load is 4 times of WLL
•All sizes are forged, and there will be pressing flat only on customer’s request

G100 Master Link Assembly

1.03.02

•Material: Forged supper alloy steel
•100% tested at 2.5 times of working load limit
•100% MPI for crack detection
•Each batch of products shall be sampled for breaking load test
•Minimum breaking load is 4 times of WLL
•Suitable for G100 chain
•The pressing flat is for connecting with G100 Omega link, and there will be pressing flat only on customer’s request

G100 Omega Link

1.03.05

•Material: High strength and high toughness alloy steel
•100% tested at 2.5 times of working load limit
•100% MPI for crack detection
•Breaking load test for samples of each batch
•Fatigue test at 1.5 times of Working Load Limit for 20000 cycles for samples of each batch
•100% Eddy current inspection for flaw detection of the pin
•The G100 Omega link is suitable for G100 chain

G100 Swivel Self-Locking Hook

1.03.10

•Material: High strength and high toughness alloy steel
•100% tested at 2.5 times of working load limit
•100% MPI for crack detection
•Breaking load test for samples of each batch
•Fatigue test at 1.5 times of Working Load Limit for 20000 cycles for samples of each batch
•The G100 Swivel Self-locking Hook is suitable for G100 chain

G100 Webbing Connecting Link

1.03.04

•Material: High strength and high toughness alloy steel
•100% tested at 2.5 times of working load limit
•100% MPI for crack detection
•Breaking load test for samples of each batch
•Fatigue test at 1.5 times of Working Load Limit for 20000 cycles for samples of each batch
•100% Eddy current inspection for flaw detection of the pin
•The G10 webbing connecting link is suitable for web sling and G100 chain

G100 Webbing Connecting Link

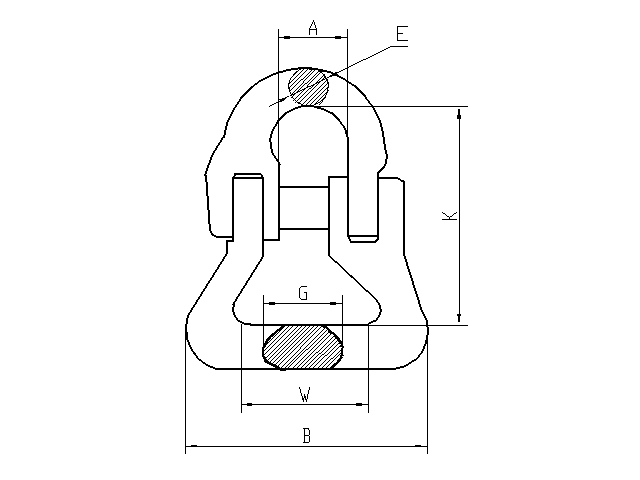

Stock no.	G100 Chain (mm)	Dimensions (mm)						WLL (t)	Weight (kg)
Stock no.	G100 Chain (mm)	A	B	K	W	G	E	WLL (t)	Weight (kg)
HS1030401	6	15.2	60.0	56.0	40.0	18.0	7.5	1.4	0.20
HS1030402	8	19.2	69.6	65.8	45.6	22.8	9.0	2.5	0.30
HS1030403	10	25.0	90.7	75.9	56.5	28.9	11.8	4	0.68
HS1030404	13	30.0	104.4	95.6	65.4	34.5	15.5	6.7	1.47
HS1030405	16	36.0	131.1	115.4	80.2	42.0	19.0	10	2.30
HS1030406	20	42.0	129.0	138.0	80.0	51.8	23.0	16	3.30
