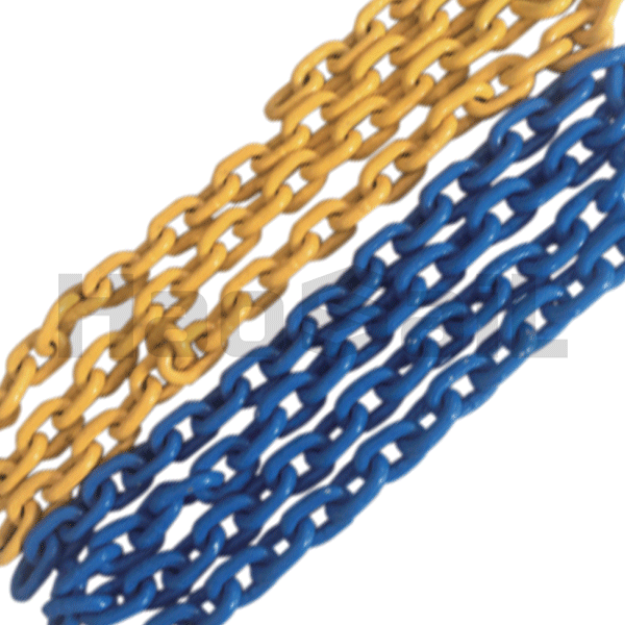

G100 Lifting Chain EN 818

* designed and manufactured according to the European standard EN 818
* made of alloy steel with specific mechanical properties to ensure strength and durability
* safety factor: 4:1
* Test certificates available upon request

SKU: 1.01.01

G100 Chain

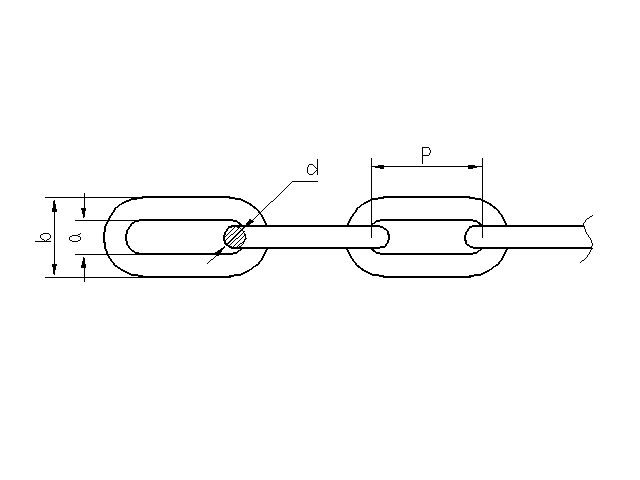

Stock no.	Size d (mm)	Pitch p (mm)	Max. outside width b (mm)	Min. inside width a (mm)	WLL (t)	Min.BL (t)	Weight (kg/m)
Stock no.	Size d (mm)	Pitch p (mm)	Max. outside width b (mm)	Min. inside width a (mm)	WLL (t)	Min.BL (t)	Weight (kg/m)
HS1010101	6	18	21.0	7.50	1.10	4.40	0.79
HS1010102	7	21	24.5	9.00	1.50	6.00	1.07
HS1010103	8	24	28.0	10.00	2.00	8.00	1.38
HS1010104	9	27	29.5	10.00	2.50	10.00	1.74
HS1010105	10	30	35.0	12.50	3.20	12.80	2.20
HS1010106	11	43	36.5	12.60	3.80	15.20	2.33
HS1010107	12	36	42.0	15.00	4.60	18.40	3.10
HS1010108	12.5	38	42.2	15.50	4.90	19.60	3.30
HS1010109	13	39	46.0	16.30	5.00	20.00	3.80
HS1010110	14	42	49.0	18.00	6.30	25.20	4.13
HS1010111	14	50	48.0	17.00	6.30	25.20	4.00
HS1010112	15	46	52.0	20.00	7.00	28.00	5.17
HS1010113	16	48	56.0	20.00	8.00	32.00	5.63
HS1010114	16	49	59.5	24.50	8.00	32.00	5.71
HS1010115	16	64	58.9	23.90	8.00	32.00	5.11
HS1010116	18	54	63.0	23.00	10.00	40.00	6.85
HS1010117	18	64	60.0	21.00	10.00	40.00	6.60
HS1010118	19	57	63.2	23.70	11.30	45.20	7.70
HS1010119	20	60	70.0	25.00	12.50	50.00	8.60
HS1010120	22	65	74.2	28.00	15.30	61.20	10.70
HS1010121	22	66	77.0	28.00	15.30	61.20	10.20
HS1010122	22	86	74.0	26.00	15.30	61.20	9.50
HS1010123	24	72	82.0	32.00	18.00	72.00	12.78
HS1010124	24	86	79.0	28.00	18.00	72.00	11.60
HS1010125	26	78	91.0	35.00	21.30	85.20	14.87
HS1010126	26	92	86.0	30.00	21.30	85.20	13.70
HS1010127	30	90	105.0	38.00	28.30	113.20	19.60
HS1010128	30	108	98.0	34.00	28.30	113.20	18.00
HS1010129	32	96	106.0	40.00	32.20	128.80	22.29
HS1010130	34	126	109.0	38.00	36.30	145.20	22.70
HS1010131	34	102	121.5	46.50	36.30	145.20	25.50
HS1010132	36	108	128.5	49.50	40.70	162.80	31.00
HS1010133	38	137	121.0	42.00	45.30	181.20	29.00
HS1010134	38	114	136.0	52.00	45.30	181.20	32.00
HS1010135	42	126	144.5	55.50	55.40	221.60	38.60

The features of G100 lifting chain include:

High Strength: G100 lifting chain is made from high-strength alloy steel, providing excellent strength and durability. It is designed to handle heavy loads and withstand demanding lifting applications.
Lightweight Design: Despite its high strength, G100 lifting chain is relatively lightweight. This feature makes it easier to handle, transport, and use in various lifting operations.
Corrosion Resistance: G100 lifting chain is often treated with surface coatings such as heat treatment or galvanization, which enhances its corrosion resistance. This allows the chain to be used in environments where there is exposure to moisture, corrosive gases, or chemicals.
Safety Factor: G100 lifting chain has a high safety factor, ensuring safe usage within its specified working load limit. The safety factor represents the ratio between the breaking strength of the chain and the maximum working load. Typically, G100 lifting chain has a safety factor ranging from 4:1 to 5:1.
Usage and Inspection: Proper usage and regular inspection of G100 lifting chain are crucial for ensuring safety. Following manufacturer guidelines, industry standards, and conducting inspections help identify any wear, damage, or maintenance requirements.
