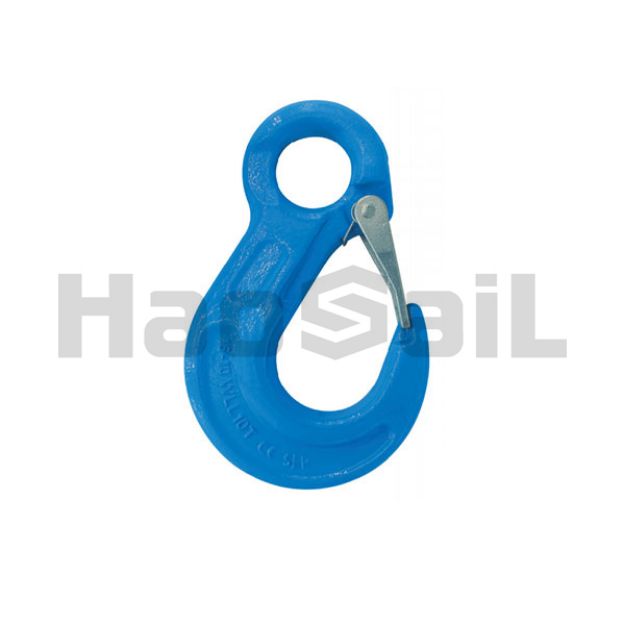

G100 Eye Sling Hook with Cast Latch

•Material: High strength and high toughness alloy steel
•100% tested at 2.5 times of working load limit
•100% MPI for crack detection
•Breaking load test for samples of each batch
•Fatigue test at 1.5 times of Working Load Limit for 20000 cycles for samples of each batch
•The G100 Eye sling hook with cast latch is suitable for G100 chain

SKU: 1.03.06

G100 Eye Sling Hook with Cast Latch

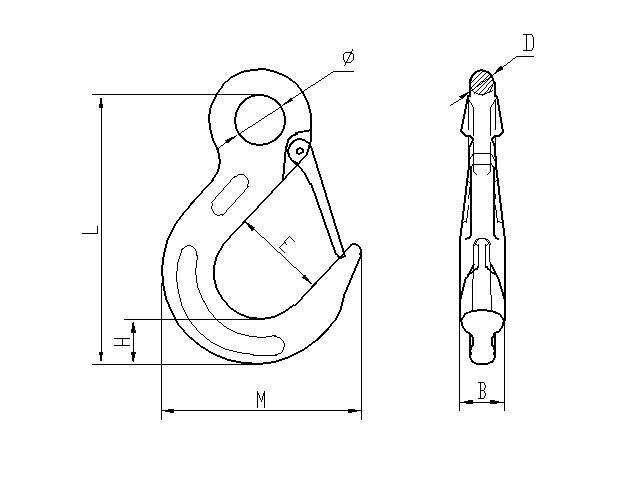

Stock no.	G100 Chain (mm)	Dimensions (mm)							WLL (t)	Weight (kg)
Stock no.	G100 Chain (mm)	B	D	E	H	φ	M	L	WLL (t)	Weight (kg)
HS1030601	6	16.5	10	18.5	21	20.5	68	111	1.4	0.32
HS1030602	7	15	11	25.5	26	25	86.9	137	1.9	0.4
HS1030603	8	19	11	25	27.5	25	87.6	137	2.5	0.6
HS1030604	10	26	16	29.5	32	35	106.4	171.5	4	1.2
HS1030605	13	33	19	38	43.5	43	134	219	6.7	2.2
HS1030606	16	40	24.5	46	50	51	158	260	10	3.5
HS1030607	20	48	27	52	56	55	190	298	16	6.2
HS1030608	22	50	29	66	62	60	214	330	19	11.5
HS1030609	26	60	35	73	75	70	245	376	26.5	12.2
HS1030610	32	71	39	87	89	81.5	270	458	39.3	17.5
