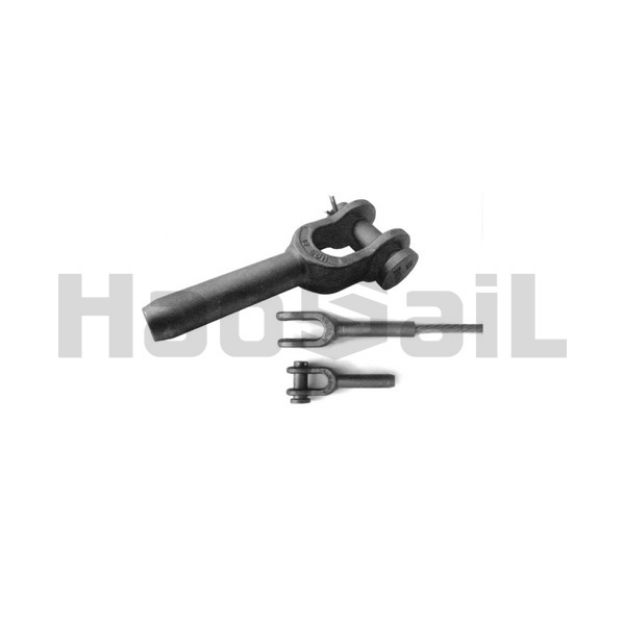

Forged Open Swage Sockets Sm-501

•Material: Carbon steel and annealed
•Production method: Forging
•Surface treatment: Self-color/Electric galvanized/Hot dip galvanized •The swage sockets have an efficiency rating of 95% based on the nominal strength of wire rope. •The swage Sockets are recommended for use with 6*19,6*37 ISP or EIP,EEIP,RRL,FC or IWRC wire rope.

SKU: 2.06.14

Forged Open Swage Sockets Sm-501
Stock no.	Rope size (in)	Dimensions(in)										Weight （lbs）

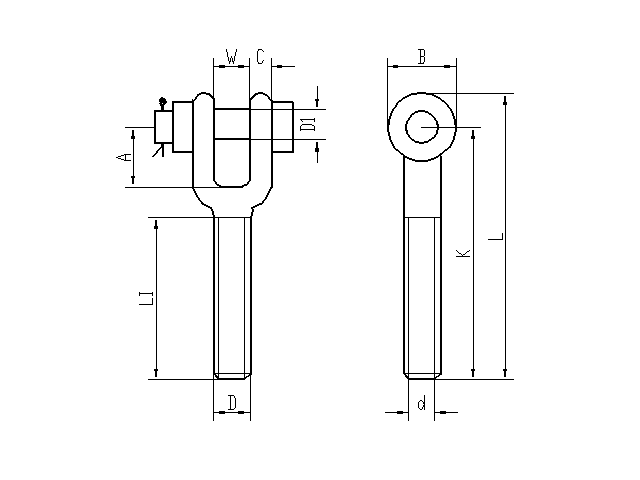

Stock no.	Rope size (in)	L	D	B	D1	d	L1	W	K	C	A	Weight （lbs）
HS2061401	1/4	4.80	0.50	1.38	0.69	0.27	2.17	0.67	4.02	0.35	1.50	0.5
HS2061402	1/3	6.26	0.77	1.65	0.81	0.34	3.15	0.79	5.31	0.47	1.77	1.1
HS2061403	3/8	6.26	0.77	1.65	0.81	0.41	3.15	0.79	5.31	0.47	1.77	1.3
HS2061404	4/9	7.83	0.98	2.00	1.00	0.48	4.33	1.00	6.85	0.55	1.96	2.1
HS2061405	5 1/2	7.83	0.98	2.00	1.00	0.55	4.33	1.00	6.85	0.55	1.96	2.1
HS2061406	5/9	9.45	1.25	2.36	1.19	0.61	5.31	1.22	8.27	0.68	2.25	4.7
HS2061407	5/8	9.45	1.25	2.36	1.19	0.67	5.31	1.22	8.27	0.68	2.25	4.5
HS2061408	3/4	11.61	1.55	2.75	1.38	0.80	6.34	1.50	10.07	0.79	2.75	8.00
HS2061409	7/8	13.39	1.70	3.15	1.63	0.94	7.44	1.77	11.81	0.94	3.23	11.5
HS2061410	1	15.55	1.98	3.94	2.00	1.06	8.50	2.00	13.58	1.02	3.86	17.8
HS2061411	1-1/8	17.40	2.25	4.06	2.20	1.19	9.37	2.25	15.08	1.19	4.26	25.3
HS2061412	1-1/4	19.06	2.53	4.45	2.25	1.33	10.59	2.48	16.50	1.34	4.72	35.6
HS2061413	1-3/8	21.02	2.80	5.00	2.50	1.45	11.69	2.52	18.23	1.38	5.20	43.8
HS2061414	1-1/2	22.88	3.08	5.51	2.52	1.58	12.40	3.00	19.75	1.69	5.57	58.5
HS2061415	1-3/4	26.53	3.39	6.70	3.50	1.86	14.88	3.50	23.00	2.11	6.75	88.8
HS2061416	2	31.44	3.94	8.00	3.75	2.11	16.96	4.00	26.88	2.37	8.00	146.3
