Forged Closed Swage Sockets

•Material: Carbon steel and annealed
•Production method: Forging
•Surface treatment: Self-color/Electric galvanized/Hot dip galvanized •The swage sockets have an efficiency rating of 95% based on the nominal strength of wire rope. •The swage Sockets are recommended for use with 6*19,6*37 ISP or EIP,EEIP,RRL,FC or IWRC wire rope.

SKU: 2.06.16

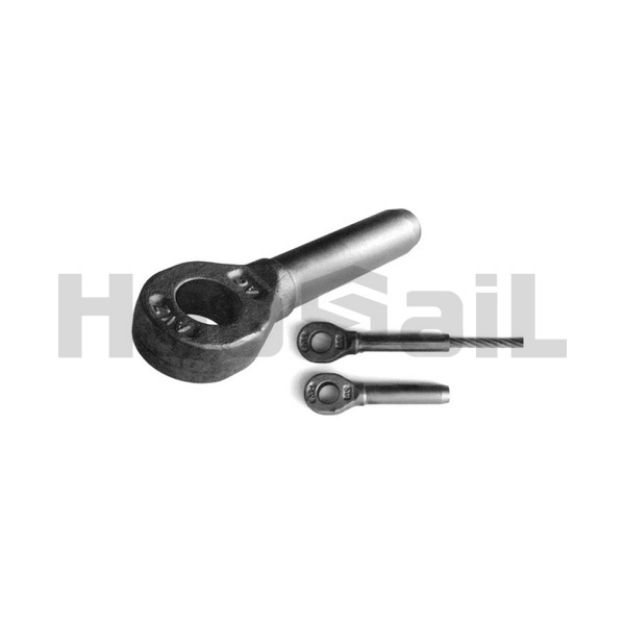

Forged Closed Swage Sockets
Stock no.	Rope size (in)	Dimensions(in)								Weight (lbs)
Stock no.	Rope size (in)	L	D	B	D1	d	L1	H	K	Weight (lbs)
HS2061601	1/4	4.33	0.50	1.38	0.75	0.27	2.13	0.50	3.50	0.33
HS2061602	1/3	5.50	0.77	1.63	0.89	0.34	3.15	0.67	4.50	0.75
HS2061603	3/8	5.50	0.77	1.63	0.89	0.41	3.15	0.67	4.50	0.72
HS2061604	4/9	6.93	0.98	2.00	1.06	0.48	4.25	0.89	5.75	1.42
HS2061605	12	6.93	0.98	2.00	1.06	0.55	4.25	0.89	5.75	1.42
HS2061606	5/9	8.70	1.25	2.40	1.26	0.61	5.31	1.14	7.28	2.92
HS2061607	5/8	8.70	1.25	2.40	1.26	0.67	5.31	1.14	7.28	2.85
HS2061608	3/4	10.20	1.55	2.87	1.44	0.80	6.38	1.31	8.54	5.00
HS2061609	7/8	11.97	1.70	3.11	1.70	0.94	7.44	1.50	10.16	6.80
HS2061610	1	13.46	1.98	3.62	2.05	1.06	8.50	1.77	11.54	10.40
HS2061611	1-1/8	15.04	2.25	4.02	2.32	1.19	9.57	2.00	12.72	14.82
HS2061612	1-1/4	16.97	2.53	4.50	2.56	1.33	10.63	2.25	14.33	21.60
HS2061613	1-3/8	18.70	2.80	5.00	2.56	1.45	11.69	2.25	15.83	28.50
HS2061614	1-1/2	20.12	3.08	5.50	2.81	1.58	12.75	2.52	17.01	38.10
HS2061615	1-3/4	23.54	3.39	6.26	3.54	1.86	14.88	3.00	20.00	51.00
HS2061616	2	27.64	3.94	7.24	3.82	2.13	17.01	3.27	23.00	89.30
