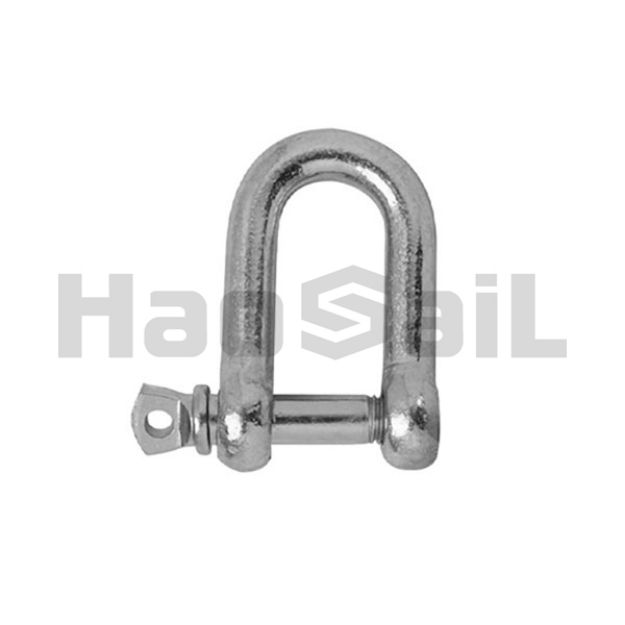

European type large D shackle

•Material: High quality carbon steel/alloy
•Production technology: Die Forging--Quenched and Tempered
•The proof load is 2 times of Working load limit
•The breaking load is 4 times of Working load limit
•Breakage test is made for samples of each batch.
•100% MPI for crack detection.

SKU: 2.01.08

Overview
Contact Us

European Type Large D Shackle

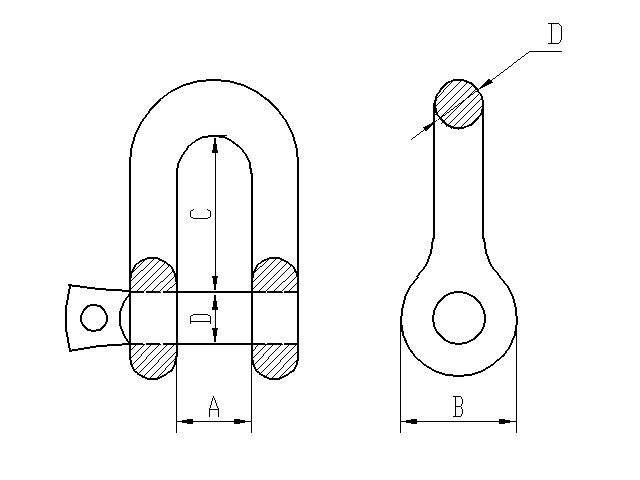

Stock no.	Size(D) (mm)	WLL (kg)	Dimensions(mm)				Weight (kg)
Stock no.	Size(D) (mm)	WLL (kg)	D	A	C	B	Weight (kg)
HS2010801	5	80	5	10	19	11	0.015
HS2010802	6	100	6	13	25	14	0.023
HS2010803	8	200	8	16	32	18	0.048
HS2010804	10	320	10	19	38	20	0.085
HS2010805	12	520	12	25	51	26	0.170
HS2010806	16	800	16	32	64	33	0.385
HS2010807	20	1100	20	38	76	40	0.760
HS2010808	22	1500	22	44	89	50	1.070
HS2010809	25	2100	25	51	100	57	1.550
HS2010810	28	3000	28	57	115	68	2.250
HS2010811	32	3500	32	64	127	73	3.350
HS2010812	38	5000	38	76	152	85	5.850
HS2010813	45	7000	45	90	180	96	10.000
HS2010814	50	8000	50	102	200	108	12.500
