European type large bow shackle

•Material: High quality carbon steel/alloy
•Production technology: Die Forging--Quenched and Tempered
•Safety factor: 4:1/6:1
•The proof load is 2 times of Working load limit
•The breaking load is 4 times of Working load limit
•Breakage test is made for samples of each batch.
•100% MPI for crack detection.

SKU: 2.01.07

Overview
Contact Us

European Type Large Bow Shackle

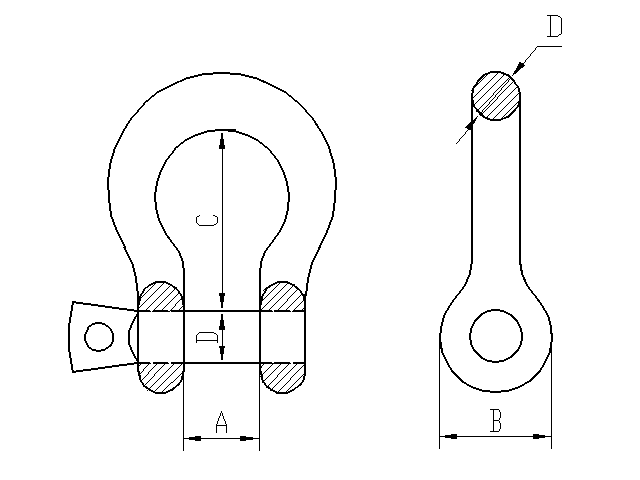

Stock no.	Size(D) (mm)	WLL (kg)	Dimensions(mm)				Weight (kg)
Stock no.	Size(D) (mm)	WLL (kg)	D	A	C	B	Weight (kg)
HS2010701	5	80	5	10	19	11	0.016
HS2010702	6	100	6	13	25	14	0.024
HS2010703	8	200	8	16	32	18	0.050
HS2010704	10	320	10	19	38	20	0.088
HS2010705	12	520	12	25	51	26	0.180
HS2010706	16	800	16	32	64	33	0.410
HS2010707	20	1100	20	38	76	40	0.776
HS2010708	22	1500	22	44	89	50	1.150
HS2010709	25	2100	25	51	100	57	1.650
HS2010710	28	3000	28	57	115	68	2.400
HS2010711	32	3500	32	64	127	73	3.500
HS2010712	38	5000	38	76	152	85	6.350
HS2010713	45	7000	45	90	180	96	11.500
