DIN741 Wire Rope Clips

•Material: Stainless steel 304 or 316
•Produced as per DIN741 standard
•Production technology: Casting
•Surface treatment: Self color/Polishing

SKU: 4.03.01

DIN741 Wire Rope Clips

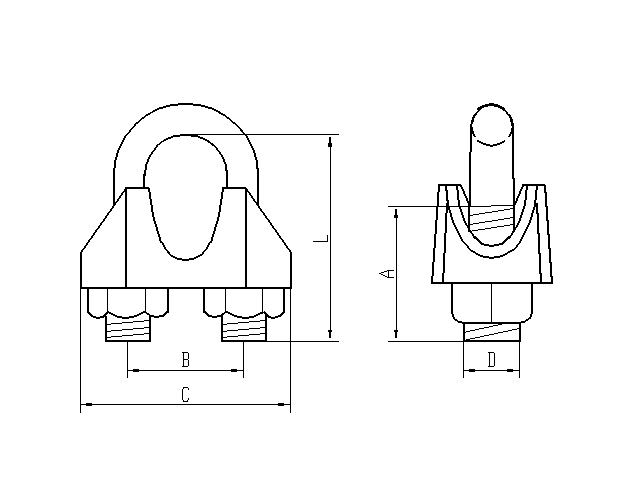

Stock no.	Size(mm)	A(mm)	B(mm)	C(mm)	D（thread）	L（mm）
HS4030101	3	12	9	21	M4	16
HS4030102	4	12	10	22	M4	18
HS4030103	5	13	11	23	M5	19
HS4030104	6	15	13	26	M5	23
HS4030105	8	19	16	30	M6	28
HS4030106	10	22	19	34	M8	34
HS4030107	11	22	20	36	M8	36
HS4030108	13	30	24	42	M10	45
HS4030109	14	30	25	44	M10	47
HS4030110	16	33	29	50	M12	51
HS4030111	19	38	32	54	M12	63
HS4030112	22	44	37	61	M14	71
HS4030113	25	45	41	65	M14	81
