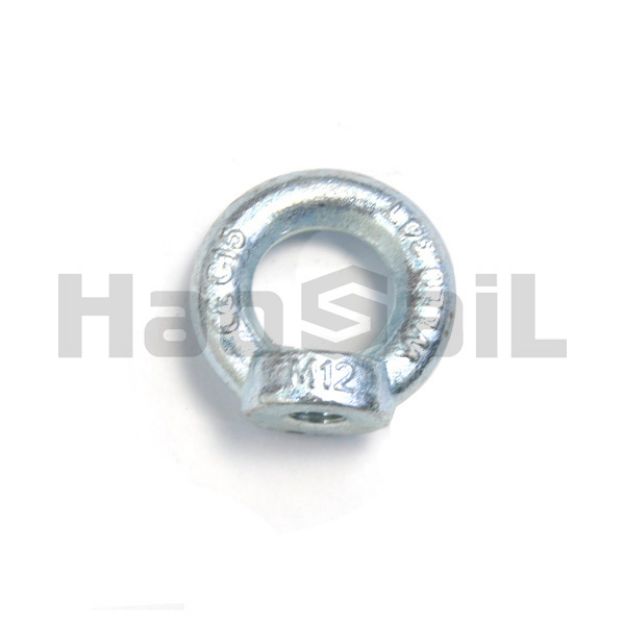

DIN582 Eye Nut

•Material: Forged supper alloy steel-Quenched and Tempered
•Production: Drop forging
•The proof load is 2.5 times of Working load limit
•The breaking load is 4 times of Working load limit
•Breakage test is made for samples of each batch.
•100% MPI for crack detection.

Manufacturer: forged

SKU: 2.04.02

DIN582 Eye Nut

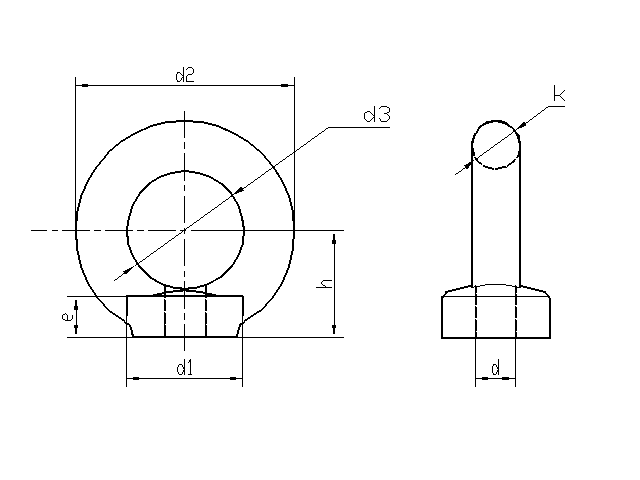

Stock no.	Size(d) (mm)	WLL (t)	Weight （kg）	Dimensions（mm）
Stock no.	Size(d) (mm)	WLL (t)	Weight （kg）	d1	d2	d3	e	h	k
HS2040201	M6	0.14	0.05	20.00	36.00	20.00	8.50	18.00	8.00
HS2040202	M8	0.14	0.05	20.00	36.00	20.00	8.50	18.00	8.00
HS2040203	M10	0.23	0.10	25.00	45.00	25.00	10.00	22.00	10.00
HS2040204	M12	0.34	0.16	30.00	54.00	30.00	11.00	26.00	12.00
HS2040205	M16	0.70	0.24	35.00	63.00	35.00	13.00	31.00	14.00
HS2040206	M20	1.20	0.35	40.00	72.00	40.00	16.00	35.00	16.00
HS2040207	M22	1.50	0.32	45.00	81.00	45.00	18.00	40.00	18.00
HS2040208	M24	180.00	0.75	50.00	90.00	50.00	20.00	45.00	20.00
HS2040209	M27	2.50	0.73	50.00	90.00	50.00	20.00	45.00	20.00
HS2040210	M30	3.60	1.40	65.00	108.00	60.00	25.00	55.00	24.00
HS2040211	M33	4.30	1.30	65.00	108.00	60.00	25.00	55.00	24.00
HS2040212	M36	5.10	2.20	75.00	126.00	70.00	30.00	64.00	28.00
HS2040213	M42	7.00	3.10	85.00	144.00	80.00	35.00	74.00	32.00
HS2040214	M48	8.60	5.01	100.00	166.00	90.00	40.00	84.00	38.00
HS2040215	M56	11.50	6.69	110.00	184.00	100.00	45.00	94.00	42.00
HS2040216	M64	16.00	9.30	120.00	206.00	110.00	50.00	104.00	48.00
