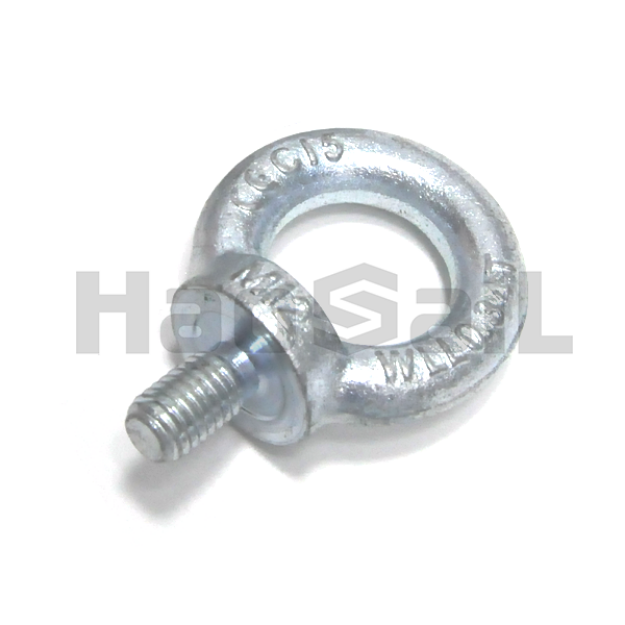

DIN580 Eye Bolt

•Material: Forged supper alloy steel-Quenched and Tempered
•Production: Drop forging
•The proof load is 2.5 times of Working load limit
•The breaking load is 4 times of Working load limit
•Breakage test is made for samples of each batch.
•100% MPI for crack detection.

SKU: 2.04.01

DIN580 Eye Bolt

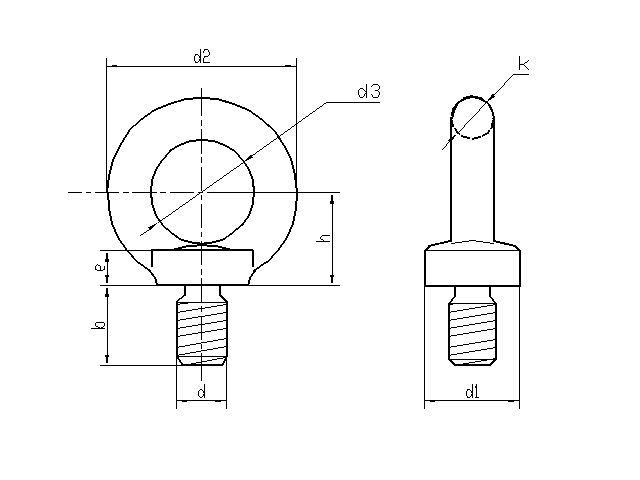

Stock no.	Size(d) (mm)	WLL (t)	Weight （kg）	Dimensions（mm）
Stock no.	Size(d) (mm)	WLL (t)	Weight （kg）	d1	d2	d3	b	e	h	k
HS2040101	M6	0.14	0.06	17.00	28.00	16.00	13.00	6.00	17.00	6.00
HS2040102	M8	0.14	0.06	20.00	36.00	20.00	13.00	6.00	18.00	8.00
HS2040103	M10	0.23	0.11	25.00	45.00	25.00	17.00	8.00	22.00	10.00
HS2040104	M12	0.34	0.17	30.00	54.00	30.00	20.50	10.00	26.00	12.00
HS2040105	M14	0.49	0.19	35.00	63.00	35.00	28.00	12.00	30.00	14.00
HS2040106	M16	0.70	0.28	35.00	63.00	35.00	27.00	12.00	31.00	14.00
HS2040107	M20	1.20	0.45	40.00	72.00	40.00	30.00	14.00	35.00	16.00
HS2040108	M22	1.50	0.49	45.00	81.00	45.00	35.00	14.00	40.00	18.00
HS2040109	M24	1.80	0.88	50.00	90.00	50.00	38.00	18.00	45.00	20.00
HS2040110	M27	2.50	0.93	50.00	90.00	50.00	38.00	18.00	45.00	20.00
HS2040111	M30	3.60	1.60	65.00	108.00	60.00	45.00	22.00	55.00	24.00
HS2040112	M33	4.30	1.70	65.00	108.00	60.00	45.00	22.00	55.00	24.00
HS2040113	M36	5.10	2.67	75.00	126.00	70.00	54.00	26.00	64.00	28.00
HS2040114	M42	7.00	4.14	85.00	144.00	80.00	63.00	30.00	74.00	32.00
HS2040115	M48	8.60	6.70	100.00	166.00	90.00	70.00	35.00	84.00	38.00
HS2040116	M56	11.50	8.70	110.00	184.00	100.00	78.00	38.00	94.00	42.00
HS2040117	M64	16.00	12.50	120.00	206.00	110.00	90.00	42.00	104.00	48.00
