DIN1142 Malleable Wire Rope Clips

•Material: Malleable carbon steel
•Produced as per DIN1142 standard
•Production technology: Casting
•Surface treatment: Self color/Electric Galvanized/Hot dip galvanized

SKU: 2.03.02

Overview
Contact Us

DIN1142 Malleable wire rope clips

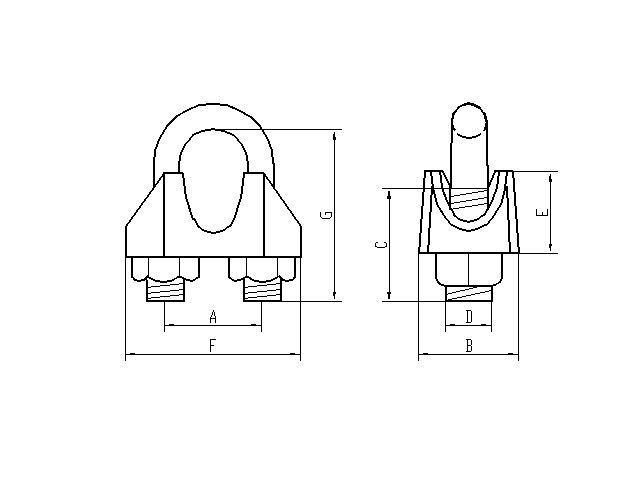

Stock no.	Size (mm)	Diemensions(mm)							Weight 100pcs (kg)
Stock no.	Size (mm)	A	B	C	D	E	F	G	Weight 100pcs (kg)
HS2030201	5	12	13	14	5	13	25	20	2.00
HS2030202	6.5	14	16	17	6	14	30	26	4.00
HS2030203	8	18	20	20	8	18	39	33	8.20
HS2030204	10	20	20	24	8	21	40	38	9.20
HS2030205	13	24	28	29	12	29	55	52	27.50
HS2030206	16	34	32	35	14	35	64	62	43.00
HS2030207	19	37	33	36	14	40	68	69	49.00
HS2030208	22	41	34	40	16	44	74	80	68.00
HS2030209	26	46	38	50	20	51	84	91	117.00
HS2030210	30	54	41	55	20	59	95	107	140.00
HS2030211	34	60	45	60	22	67	105	119	213.00
HS2030212	40	68	49	65	24	77	117	135	268.00
