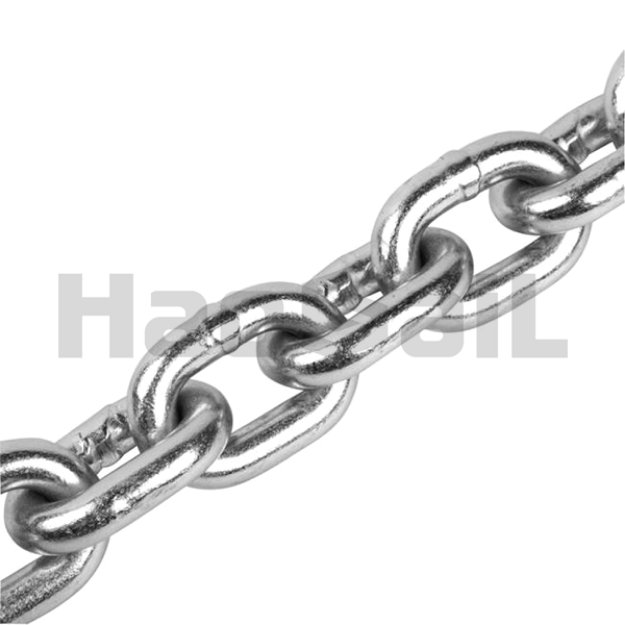

DIN 766 Standard Link Chain

•Confirm to Germany standard, DIN766
•Material: Carbon steel
•Surface treatment: Self-Color,Blackened,Hot-Dip galvanized
•Test certificates available upon request.

SKU: 1.01.17

DIN 766 Standard Link Chain

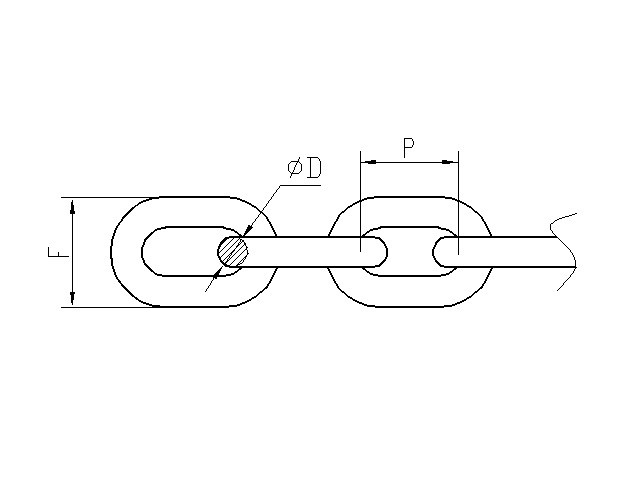

Stock no.	Size φD		Inside length p		Outside width F (mm)	BL (kg)	Weight (kg/m)
Stock no.	(mm)	tolerance (±mm)	(mm)	tolerance (±mm)	Outside width F (mm)	BL (kg)	Weight (kg/m)
HS1011701	2	0.20	12.00	0.20	7.5	125	0.07
HS1011702	3	0.20	16.00	0.20	11.0	400	0.16
HS1011703	4	0.20	16.00	+0.3-0.2	13.7	800	0.32
HS1011704	5	0.20	18.50	+0.4-0.2	17.0	1,250	0.50
HS1011705	6	0.20	18.50	+0.4-0.2	20.2	1,600	0.80
HS1011706	7	0.30	22.00	+0.4-0.2	23.8	2,500	1.10
HS1011707	8	0.30	24.00	+0.4-0.2	27.2	3,200	1.40
HS1011708	9	0.40	27.00	+0.5-0.3	30.6	4,000	1.80
HS1011709	10	0.40	28.00	+0.5-0.3	34.0	5,000	2.20
HS1011710	11	0.40	31.00	+0.5-0.3	37.4	6,300	2.70
HS1011711	12	0.30	36.00	+0.6-0.3	40.8	7,240	3.10
HS1011712	13	0.50	36.00	+0.6-0.3	44.2	8,000	3.80
HS1011713	14	0.60	41.00	+0.7-0.4	47.6	12,500	4.40
HS1011714	16	0.60	45.00	+0.8-0.4	54.4	16,000	5.70
HS1011715	18	0.90	50.00	+0.8-0.4	61.2	18,000	7.30
HS1011716	19	0.40	53.00	+0.9-0.4	64.6	20,000	7.97
HS1011717	20	1.00	56.00	+1.0-0.5	68.0	22,796	9.00
HS1011718	22	1.20	62.00	+1.1-0.5	75.0	24,300	11.00
HS1011719	23	1.20	64.00	+1.1-0.5	78.2	25,000	12.00
HS1011720	26	1.30	73.00	+1.2-0.6	88.4	32,000	15.00
HS1011721	28	1.40	78.00	+1.3-0.65	95.2	40,000	18.00
HS1011722	30	1.50	84.00	+1.4-0.7	102.0	45,000	19.50
HS1011723	32	1.60	90.00	+1.5-0.75	108.8	50,000	23.00

DIN 766 is a German standard that specifically addresses calibrated short-link chains for anchor and mooring purposes. These chains are designed for marine applications and are commonly used for anchoring boats, ships, and other watercraft. DIN 766 chains have precise dimensions and tolerances to ensure compatibility with windlasses and anchor winches. They are made from low carbon steel and are typically hot-dip galvanized to provide corrosion resistance in marine environments.
