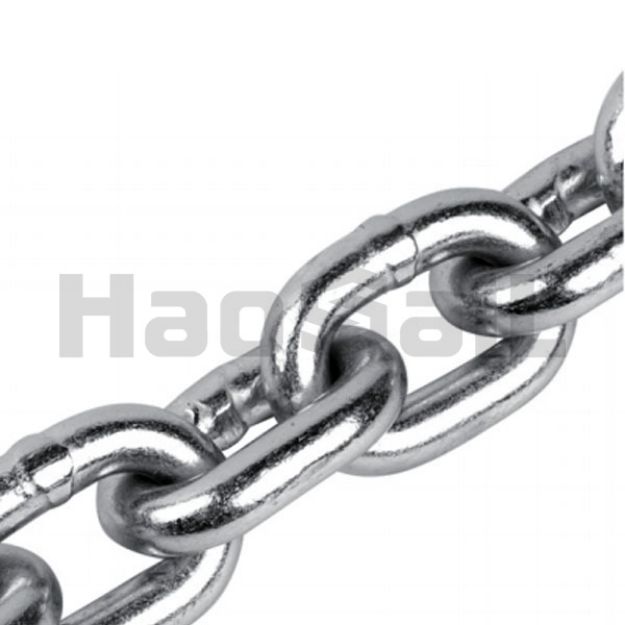

DIN 764 Standard Link Chain

•Confirm to Germany standard, DIN764
•Material: Carbon steel
•Surface treatment: Self-Color,Blackened,Painted,Plastic Coating,Hot-Dip galvanized
•Test certificates available upon request.

SKU: 1.01.16

DIN 764 Standard Link Chain

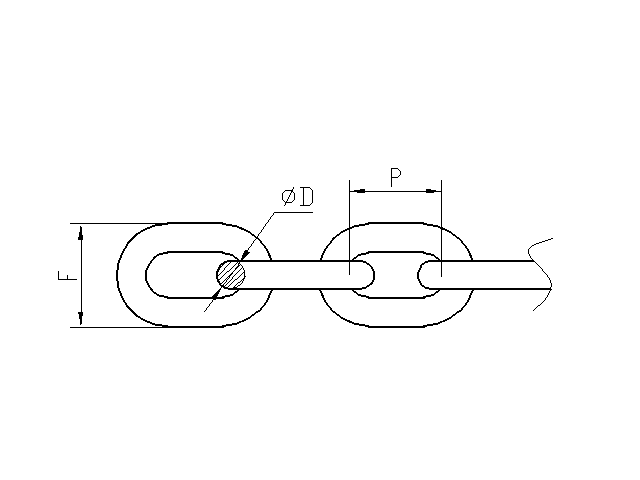

Stock no.	Size φD		Inside length P		Outside width F (mm)	PL (kg)	BL (kg)	Weight (kg/m)
Stock no.	(mm)	tolerance (mm)	(mm)	tolerance (±mm)	Outside width F (mm)	PL (kg)	BL (kg)	Weight (kg/m)
HS1011601	4	±0.2	16	+0.20-0.30	14	400	700	0.31
HS1011602	5	±0.2	18	+0.20-0.40	18	680	1180	0.51
HS1011603	6	±0.2	21	+0.20-0.50	22	850	1650	0.74
HS1011604	8	±0.2	28	+0.30-0.50	29	1680	3200	1.32
HS1011605	10	±0.3	35	+0.30-0.60	36	2630	5000	2.00
HS1011606	12	±0.3	42	+0.30-0.60	41	3680	7000	2.98
HS1011607	13	±0.4	45	+0.40-0.70	47	4200	8000	3.50
HS1011608	14	±0.45	49	+0.45-0.75	48	4600	9200	4.06
HS1011609	16	±0.5	56	+0.50-0.90	58	6700	12500	5.20
HS1011610	18	±0.8	63	+0.50-1.00	65	8400	16000	6.50
HS1011611	20	±1	70	+0.60-1.10	72	10000	20000	8.20
HS1011612	23	±1.2	80	+0.70-1.30	83	13000	25000	11.00
HS1011613	26	±1.3	91	+0.80-1.50	94	16000	32000	14.00
HS1011614	28	±1.4	98	+0.90-1.60	101	18000	36000	16.50
HS1011615	30	±1.5	105	+0.90-1.70	108	20750	41500	19.00
HS1011616	33	±1.7	115	+1.00-1.90	119	25000	50000	22.50

DIN 764 chains are primarily used in chain conveyor systems, which are commonly employed in industries such as mining, agriculture, and material handling. These chains are designed to withstand the demanding conditions of continuous conveying applications.

Link Design: DIN 764 chains feature round or oval-shaped links that are calibrated to ensure consistent dimensions and improved wear resistance.
Material: DIN 764 chains are typically made from low or medium carbon steel. The specific material grade and composition may vary depending on the manufacturer and application requirements.
Dimensions: DIN 764 specifies the dimensions of the chain links, such as the width, thickness, and diameter. These dimensions are designed to provide compatibility with the chain conveyor system components.
Mechanical Properties: The standard defines the mechanical properties of DIN 764 chains, including tensile strength, elongation, and hardness. These properties ensure the chains' durability and performance under load.
Coatings: DIN 764 chains may undergo various surface treatments and coatings to enhance their corrosion resistance and provide additional protection against wear and environmental factors.
