Picture of DIN 763 Standard Link Chain

DIN 763 Standard Link Chain

•Confirm to Germany standard, DIN763
•Material: Carbon steel
•Surface treatment: Self-Color,Blackened
•Test certificates available upon request.
SKU: 1.01.15

DIN 763 Standard Link Chain

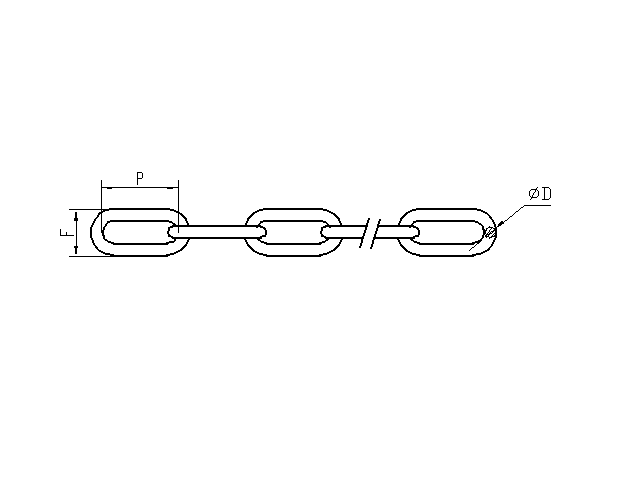

Stock no.Size φDInside length POutside width FBL
(kn)		Weight
(kg/m)
(mm)tolerance
(±mm)		(mm)tolerance
(±mm)		(mm)tolerance
( ±mm)
HS101150120.50 221.00 80.41.25 0.06
HS10115022.50.50 241.10 100.52.00 0.10
HS101150330.50 261.20 120.63.20 0.15
HS10115043.50.50 281.30 140.73.85 0.20
HS101150540.50 321.50 160.86.50 0.27
HS10115064.50.50 341.70 180.98.00 0.35
HS101150750.50 351.80 201.0 10.00 0.43
HS10115085.50.50 391.80 221.1 10.50 0.52
HS101150960.50 422.00 241.2 12.00 0.63
HS101151070.50 492.50 281.4 19.00 0.86
HS101151180.50 522.50 321.6 25.00 1.10
HS10115128.50.50 562.80 341.7 25.50 1.25
HS101151390.50 593.00 361.8 32.00 1.41
HS1011514101.00 653.20 402.0 40.00 1.75
HS1011515111.00 723.40 442.0 47.50 2.11
HS1011516121.00 783.60 482.3 56.50 2.55
HS1011517131.00 824.00 522.5 63.00 2.95
HS1011518161.00 1005.00 643.2 100.00 4.45
HS1011519181.00 1135.20 703.2 127.00 5.65
HS1011520191.00 1195.60 723.4 142.00 6.25
HS1011521201.00 1206.00 753.8 160.00 7.00
HS1011522221.00 1276.00 824.0 190.00 8.55
HS1011523251.00 1406.60 854.2 245.00 10.90
HS1011524281.00 1527.00 964.7 300.00 13.90
HS1011525321.00 1718.00 1085.0 400.00 18.20



DIN 763 Standard Link Chain is commonly used in various industrial applications and offers certain characteristics and specifications.

  1. Link Design: DIN 763 Standard Link Chain typically has a long link design with relatively large openings between the links. The links are typically round or oval-shaped, providing a versatile and flexible chain configuration.

  2. Material: DIN 763 Standard Link Chain is typically made from low carbon steel or mild steel. This material composition balances strength, durability, and affordability for general-purpose applications.

  3. Surface Finish: DIN 763 Standard Link Chain often has a self-colored or black finish. The chain may undergo a mild surface treatment such as oiling to provide some level of corrosion resistance.

  4. Load Capacity: The load capacity of DIN 763 Standard Link Chain depends on its size or nominal diameter. The manufacturer typically provides load capacity charts or tables that indicate the maximum working load limit (WLL) for each chain size.

  5. Applications: DIN 763 Standard Link Chain is commonly used in various applications, including general lifting and rigging, agricultural equipment, suspension systems, and decorative purposes. It is suitable for moderate load-bearing applications where high strength or specialized properties are not required.
