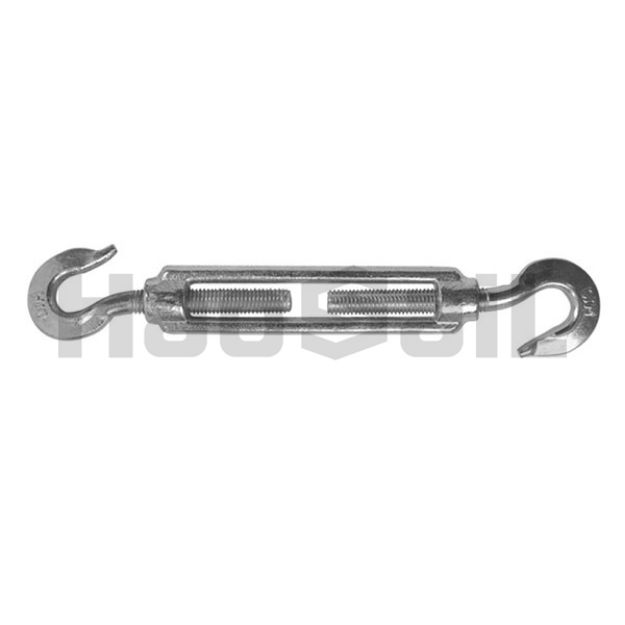

DIN 1480 Turnbuckle with Hook&Hook

•Material: High quality carbon steel/alloy
•Production technology: Die Forging--Quenched and Tempered
•Safety factor: 6:1; 4:1
•The proof load is 2 times of Working load limit
•The breaking load is 4 times of Working load limit
•Breakage test is made for samples of each batch.
•100% MPI for crack detection.

SKU: 2.02.03

Overview
Contact Us

DIN 1480 Turnbuckle with Hook&Hook

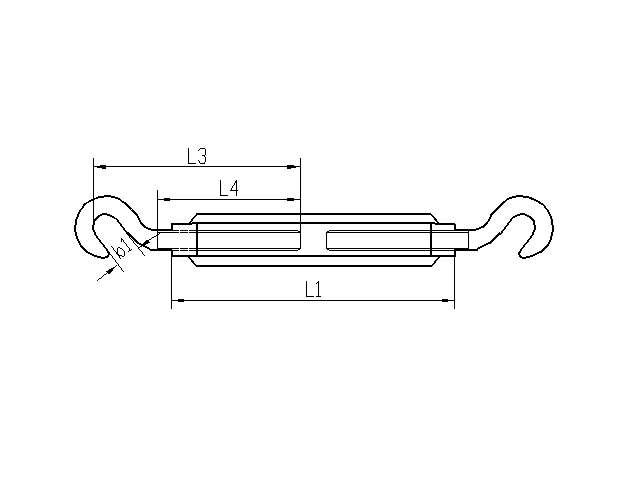

Stock no.	Thread	WLL （n）	L1 （mm）	L3 （mm）	L4 （mm）	b1 （mm）	Weight（kg） Per100pcs
HS2020301	M6	2250	110	77	50	8	9
HS2020302	M8	4100	110	98	60	10	15
HS2020303	M10	6500	125	116.5	73	12.5	26
HS2020304	M12	9300	125	146	90	16	40
HS2020305	M16	17700	170	165	100	16	95
HS2020306	M20	27000	200	180	105	18	164
HS2020307	M22	32000	220	215	120	23	231
HS2020308	M24	39200	255	225	135	30	285
HS2020309	M30	62500	255	225	140	30	411
HS2020310	M36	91000	295	300	170	32	745
