DIN 1480 Turnbuckle with Eye&Hook

•Material: High quality carbon steel
•Production technology: Drop Forging
•Surface treatment: Self color/Electric Galvanized/Hot.dip.galvanized
•Breakage test is made for samples of each batch.
•100% MPI for crack detection.

SKU: 2.02.01

DIN 1480 Turnbuckle with Eye&Hook

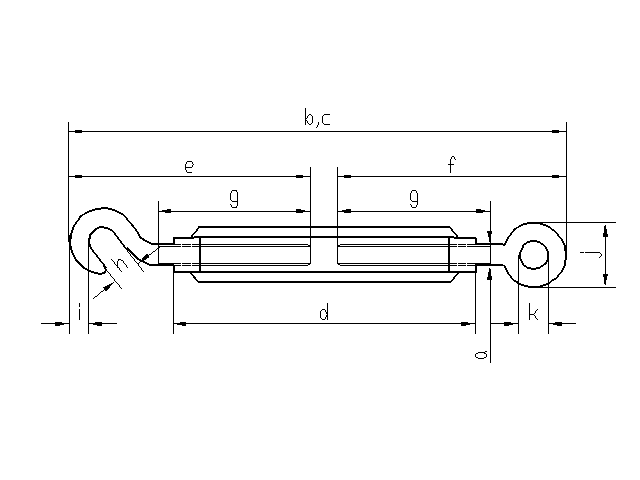

Stock no.	Size(a) (mm)	Dimensions(mm)										Weight (kg)
Stock no.	Size(a) (mm)	b	c	d	e	f	g	h	i	j	k	Weight (kg)
HS2020101	5	125	180	70	56	57	35	7	12	16	8	0.07
HS2020102	6	172	258	110	77	80	55	8	15	20	9	0.11
HS2020103	8	184	264	110	85	84	57	10.5	15	22	10	0.20
HS2020104	10	222	311	125	106	105	68	13	11	31	14	0.28
HS2020105	12	241	324	125	117	111	70	16	13	35	16	0.43
HS2020106	14	261	351	140	124	122	75	18	15	40	18	0.61
HS2020107	16	311	427	170	144	150	88	20	17	47	22	1.00
HS2020108	20	358	490	200	170	167	105	21	21	52	24	1.60
HS2020109	22	414	559	220	200	186	118	24	28	60	27	2.20
HS2020110	24	453	630	255	215	205	135	26	33	65	27	2.80
HS2020111	30	495	660	255	240	220	135	34	35	71	31	4.10
HS2020112	33	545	744	295	260	245	148	38	40	88	36	6.00
HS2020113	36	597	782	295	275	277	158	46	45	94	38	8.40
