DIN 1480 Turnbuckle Body

•Material: High quality carbon steel
•Production technology: Drop Forging
•Surface treatment: Self color/Electric Galvanized/Hot.dip.galvanized
•Breakage test is made for samples of each batch.
•100% MPI for crack detection.

SKU: 2.02.06

Overview
Contact Us

DIN 1480 Turnbuckle Body

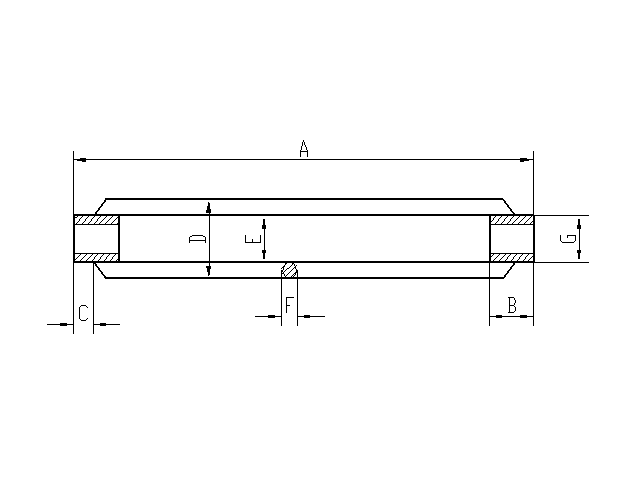

Stock no.	Thread	A （mm）	B （mm）	C （mm）	D （mm）	E （mm）	F （mm）	G （mm）	Adjustable （mm）	Weight（kg） Per100pcs
HS2020601	M6	110	12	6	19	9	6	12	80	6
HS2020602	M8	110	15	8	23	11	8	15	75	9
HS2020603	M10	125	18	9	30	14	9	18	85	15
HS2020604	M12	125	21	11	34	16	11	21	80	20
HS2020605	M14	140	24	9	38	18	10	25	110	30
HS2020606	M16	170	27	14	42	20	14	27	110	44
HS2020607	M20	200	34	17	52	24	17	34	130	44
HS2020608	M22	220	37	15	57	26	16	37	170	105
HS2020609	M24	255	39	20	60	28	20	39	170	120
HS2020610	M27	255	39	20	60	28	20	39	160	180
HS2020611	M30	255	45	23	74	34	23	45	160	190
HS2020612	M36	295	55	28	86	40	28	55	180	320
HS2020613	M42	330	63	32	104	50	32	63	200	450
HS2020614	M48	355	78	39	135	65	40	80	195	800
HS2020615	M56	355	78	39	135	65	40	80	195	910
