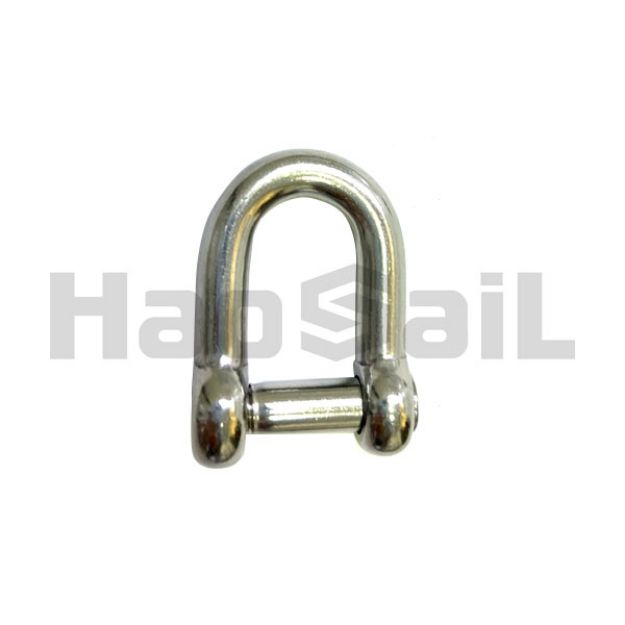

D Shackle with Oval Sink Pin

•Material: Stainless steel 304 or 316
•Production technology: Die Forging--Quenched and Tempered
•Safety factor: 6:1; 4:1
•The proof load is 2 times of Working load limit
•The breaking load is 4 times of Working load limit
•Breakage test is made for samples of each batch.
•100% MPI for crack detection.

SKU: 4.01.03

Overview
Contact Us

D Shackle with Oval Sink Pin

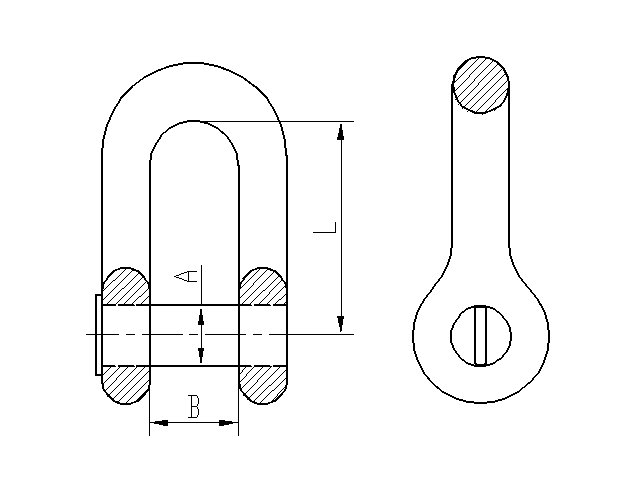

Stock no.	Size(mm)	A(mm)	B(mm)	L(mm)	BL(lbs)
HS4010301	3	3	6	12	400
HS4010302	4	4	8	16	550
HS4010303	5	5	10	20	1000
HS4010304	6	6	12	24	1700
HS4010305	7	7	14	28	2000
HS4010306	8	8	16	32	2800
HS4010307	9	9	18	36	3500
HS4010308	10	10	20	40	4500
HS4010309	12	12	24	48	6000
HS4010310	13	13	26	52	6500
HS4010311	14	14	28	56	7000
HS4010312	16	16	32	64	10000
HS4010313	19	19	38	76	15000
HS4010314	22	22	44	88	19000
HS4010315	25	50	50	100	23000
HS4010316	28	28	56	112	26000
HS4010317	32	32	64	128	38000
