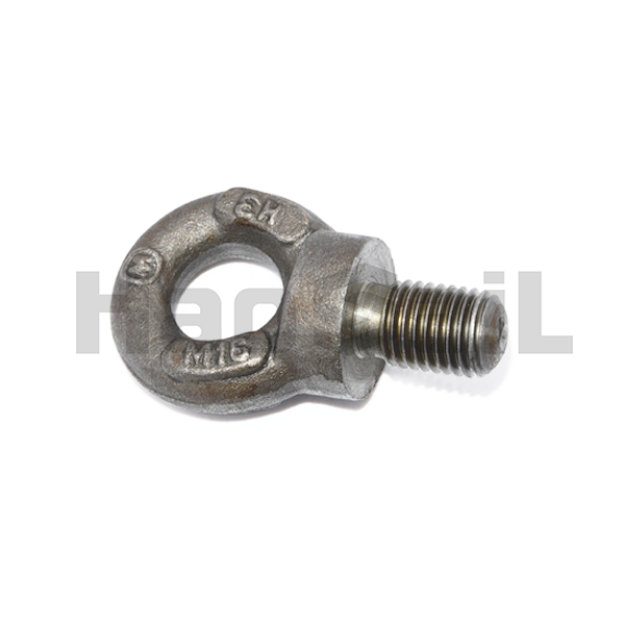

BS4278 Collar Eye Bolt

•Material: Forged supper alloy steel-Quenched and Tempered
•Production: Drop forging
•The proof load is 2.5 times of Working load limit
•The breaking load is 4 times of Working load limit
•Breakage test is made for samples of each batch.
•100% MPI for crack detection.

SKU: 2.04.05

BS4278 Collar Eye Bolt

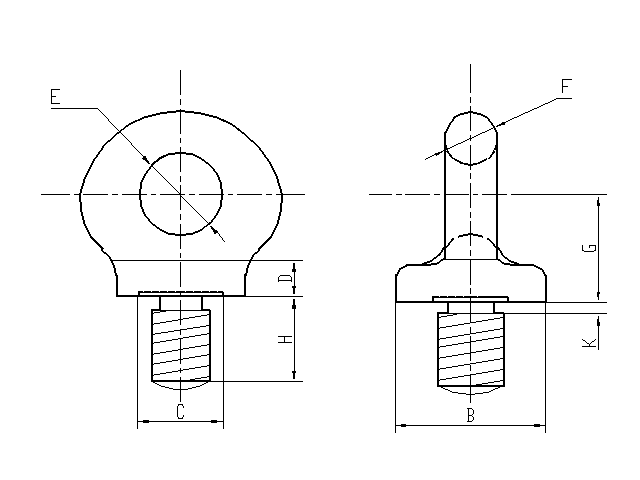

Stock no.	Size (mm)	WLL (t)	Dimensions（mm）
Stock no.	Size (mm)	WLL (t)	B	C	D	E	F	G	H	K
HS02040501	M12	0.4	22	15	7	15	9	20	18	3
HS02040502	M16	0.8	29	20	10	20	12	26	23	3
HS02040503	M18	1	36	24	12	24	14	32	28	4
HS02040504	M20	1.6	40	27	14	27	16	36	32	5
HS02040505	M22	1.6	45	30	15	30	18	40	35	5
HS02040506	M24	2.5	52	35	17	35	21	46	40	6
HS02040507	M27	2.5	58	39	20	39	23	52	46	7
HS02040508	M30	4	65	44	22	44	26	58	51	7
HS02040509	M33	4	72	48	24	48	29	64	56	8
HS02040510	M36	6.3	81	54	27	54	32	72	63	9
HS02040511	M39	6.3	90	60	30	60	36	80	70	10
HS02040512	M45	8	101	68	34	68	40	90	79	11
HS02040513	M52	12.5	115	76	38	76	46	102	89	13
HS02040514	M56	16	128	86	43	86	51	114	100	14
HS02040515	M64	20	144	96	48	96	58	128	112	16
HS02040516	M70	20	162	108	54	108	65	144	126	18
HS02040517	M76	25	180	120	60	120	72	160	140	20
