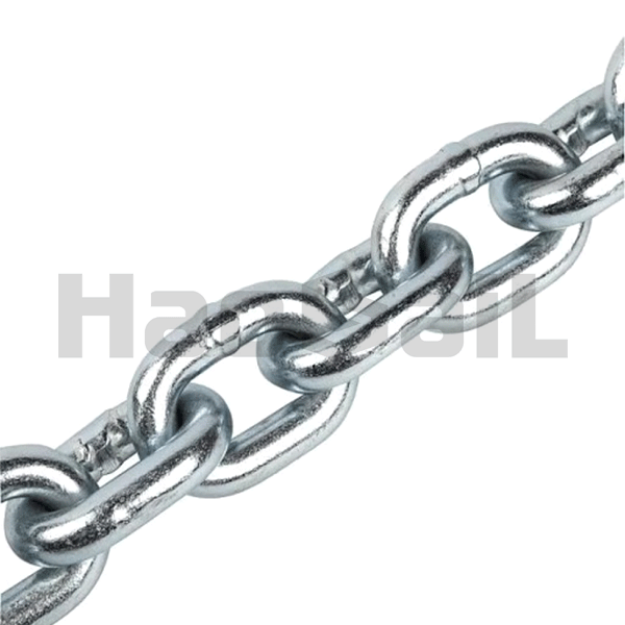

Australian Standard Chain-Short Link Chain

•Confirm to Australian standard
•Material: high quality alloy steel
•Surface treatment: Self-Color,Blackened,Painted,Plastic Coating,Hot-Dip galvanized
•Marked with Chain size, product ID, grade with manufacture quality mark.
•Test certificates available upon request.
Haosail’s Australian chains are suitable for lifting, traction, binding, marine, lifting, hoist, etc. And there are various length of the link for customer’s choice. This type is the short link chain.

SKU: 1.01.11

Australian Standard Chain-Short Link Chain
Stock no.	Size φD (mm)	WLL (t)	lnside length P (mm)	Outside width F (mm)	Links per m (pc)	Length per 100kg		B.F weight (kg/m)	H.D.G weight (kg/m)
Stock no.	Size φD (mm)	WLL (t)	lnside length P (mm)	Outside width F (mm)	Links per m (pc)	B.F(m)	H.D.G(m)	B.F weight (kg/m)	H.D.G weight (kg/m)
HS1011101	5	0.24	14.60	17.20	68.30	174.00	167.00	0.57	0.60
HS1011102	6	0.32	18.90	21.50	52.90	114.00	108.00	0.88	0.93
HS1011103	8	0.53	24.00	27.50	41.70	70.50	67.00	1.42	1.49
HS1011104	10	0.83	29.50	33.50	33.90	45.20	42.90	2.21	2.33
HS1011105	12	1.50	37.50	40.60	26.70	29.50	28.00	3.39	3.57
HS1011106	13	1.60	38.80	44.60	25.80	26.90	26.30	3.72	3.80
HS1011107	16	2.31	47.00	54.00	21.30	17.60	16.70	5.68	5.99
HS1011108	20	3.45	59.20	68.50	16.90	11.30	11.10	8.85	9.01
HS1011109	22	4.55	64.90	77.00	15.40	9.50	9.20	10.53	10.87
HS1011110	24	5.43	71.00	82.20	14.10	7.80	7.60	12.82	13.16
