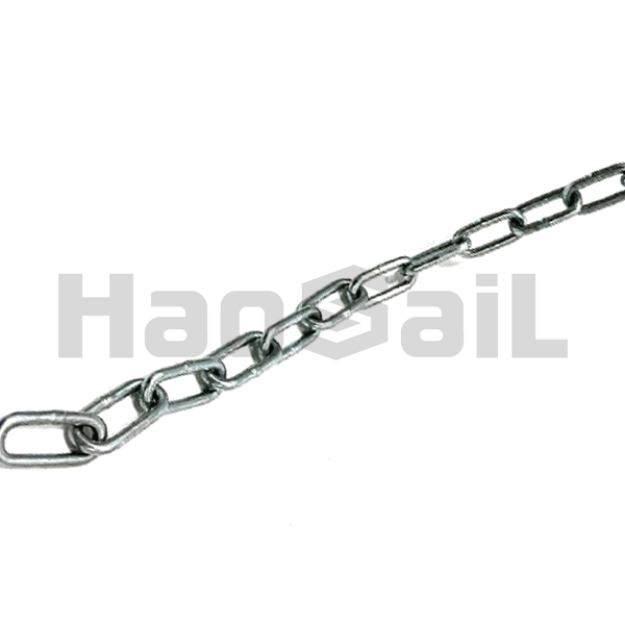

Australian Standard Chain-Grade L Chain

•Confirm to Australian standard Grade L
•Material: high quality alloy steel
•Surface treatment: Self-Color,Blackened,Painted,Plastic Coating,Hot-Dip galvanized
•Test certificates available upon request.
Haosail’s Australian chains are suitable for lifting, traction, binding, marine, lifting, hoist, etc. And there are various length of the link for customer’s choice. This type is the Grade L chain.

SKU: 1.01.14

Australian Standard Chain-Grade L Chain
Stock no.	Size φD (mm)	WLL (t)	lnside length P (mm)	Outside width F (mm)	Links per m (pc)	Length per 100kg		B.F weight (kg/m)	H.D.G weight (kg/m)
Stock no.	Size φD (mm)	WLL (t)	lnside length P (mm)	Outside width F (mm)	Links per m (pc)	B.F(m)	H.D.G(m)	B.F weight (kg/m)	H.D.G weight (kg/m)
HS1011401	5	0.25	14.6	17.2	68.3	174	167	0.57	0.60
HS1011402	6	0.40	18.8	21.6	53.2	116	110	0.86	0.91
HS1011403	8	0.64	23.8	27	42	71.4	69.9	1.40	1.43
HS1011404	10	1.00	29.8	34.3	33.6	44.8	43.9	2.23	2.28
HS1011405	13	1.70	38.8	44.6	25.8	28.9	26.3	3.46	3.80
HS1011406	16	2.58	47.8	54.8	20.9	17.8	17.5	5.62	5.71
HS1011407	20	4.03	59.2	68.5	16.9	11.3	11.1	8.85	9.01
HS1011408	22	5.06	64.9	77	15.4	9.5	9.2	10.53	10.87
HS1011409	24	5.61	71	82.2	14.1	7.8	7.6	12.82	13.16

Grade L chains are commonly used in industries such as construction, mining, and manufacturing for lifting and rigging purposes.

Material: Grade L chains are typically made from alloy steel or carbon steel with specific chemical compositions to ensure strength and durability.
Strength and Load Capacity: The standard defines the minimum breaking force and working load limit (WLL) for Grade L chains of different sizes. These values indicate the maximum load capacity the chains can safely handle.
