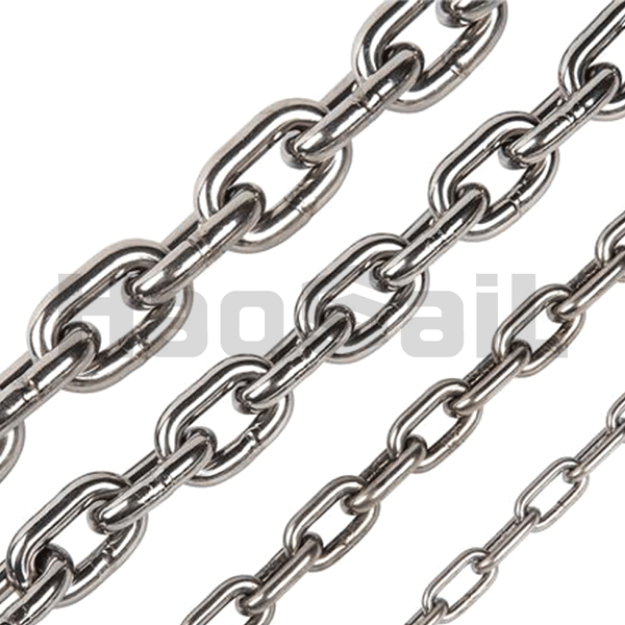

ASTM80 Standard Link Chain

•Confirm to ASTM80 standard
•Material: high quality alloy steel
•Surface treatment: Self-Color,Blackened,Painted,Plastic Coating,Hot-Dip galvanized
•Safety Factor: MIN 4 times
•Test certificates available upon request.

SKU: 1.01.09

ASTM80 Standard Link Chain G30

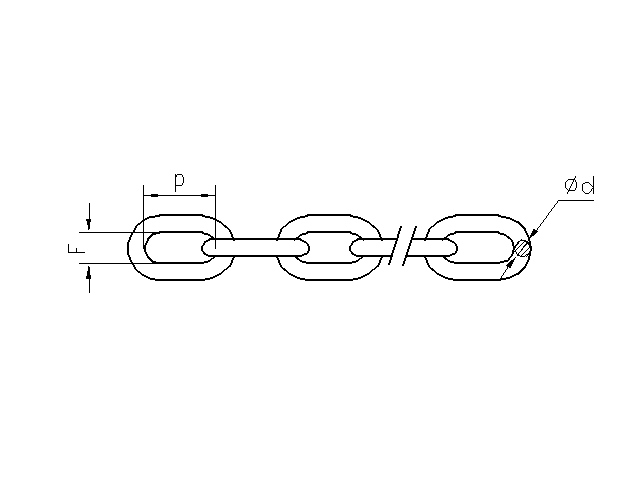

Stock no.	Normal size φd		WLL max.		BL min.		Inside length P max.		Inside width F min.		Weight
Stock no.	(in)	(mm)	(lbs)	(kg)	(lbs)	(kn)	(mm)	(in)	(mm)	(in)	(kg/m)
HS1010901	1/8	4.0	420	190	1,700	7.56	22.6	0.89	7.4	0.29	0.29
HS1010902	3/16	5.5	800	360	3,200	14.20	24.1	0.95	10.2	0.40	0.60
HS1010903	1/4	7.1	1,330	600	5,300	23.60	25.4	1.00	12.7	0.50	1.07
HS1010904	5/16	8.7	2,000	910	8,000	35.60	27.9	1.10	12.7	0.50	1.57
HS1010905	3/8	10.3	2,800	1,270	11,200	49.80	31.2	1.23	15.7	0.62	2.31
HS1010906	1/2	13.5	4,800	2,190	19,300	85.80	38.9	1.53	20.3	0.80	4.04
HS1010907	5/8	16.7	7,400	3,350	29,600	131.60	48.3	1.90	25.4	1.00	6.04
HS1010908	3/4	19.8	10,400	4,700	41,600	185.00	54.6	2.15	28.4	1.12	8.66
HS1010909	7/8	23.0	14,000	6,350	56,000	249.00	63.5	2.50	34.8	1.37	12.27
HS1010910	1	26.5	18,600	8,400	74,400	330.80	69.9	2.75	38.1	1.50	16.50
ASTM80 Standard Link Chain G43
Stock no.	Normal size φd		WLL max.		BL min.		Inside length P max.		Inside width F min.		Weight
Stock no.	(in)	(mm)	(lbs)	(kg)	(lbs)	(kn)	(mm)	(in)	(mm)	(in)	(kg/m)
HS1010911	1/4	7.1	2,600	1,180	7,750	34.50	21.8	0.86	10.2	0.40	1.19
HS1010912	5/16	8.7	3,900	1,770	11,600	51.60	26.7	1.05	12.2	0.48	1.65
HS1010913	3/8	10.3	5,400	2,450	16,200	72.00	30.3	1.19	14.7	0.58	2.38
HS1010914	1/2	13.5	9,200	4,170	27,600	122.70	36.0	1.43	19.1	0.75	4.22
ASTM80 Standard Link Chain G70
Stock no.	Normal size φd		WLL max.		BL min.		Inside length P max.		Inside width F min.		Weight
Stock no.	(in)	(mm)	(lbs)	(kg)	(lbs)	(kn)	(mm)	(in)	(mm)	(in)	(kg/m)
HS1010915	1/4	7.1	3,150	1,430	12,600	56.0	21.8	0.86	11.4	0.45	1.12
HS1010916	5/16	8.7	4,700	2,130	18,800	83.6	25.6	1.01	11.7	0.46	1.65
HS1010917	3/8	10.3	6,600	2,990	26,400	117.4	30.2	1.19	14.0	0.55	2.33
HS1010918	1/2	13.5	11,300	5,130	45,200	201.1	36.0	1.43	19.1	0.75	4.46
