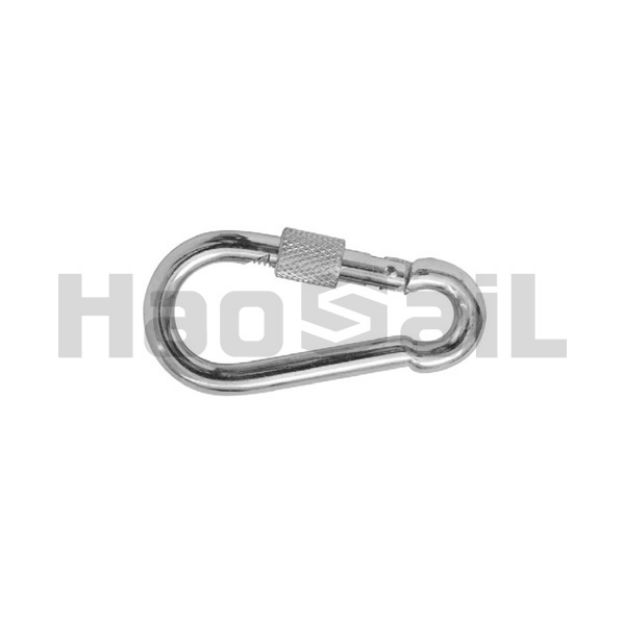

Snap Hook with Screw

•Material: Alloy steel
•Production: Cold forming
•Surface treatment: Polishing/Zinc plated •Safety factor: 4:1

SKU: 2.07.02

Snap Hook with Screw

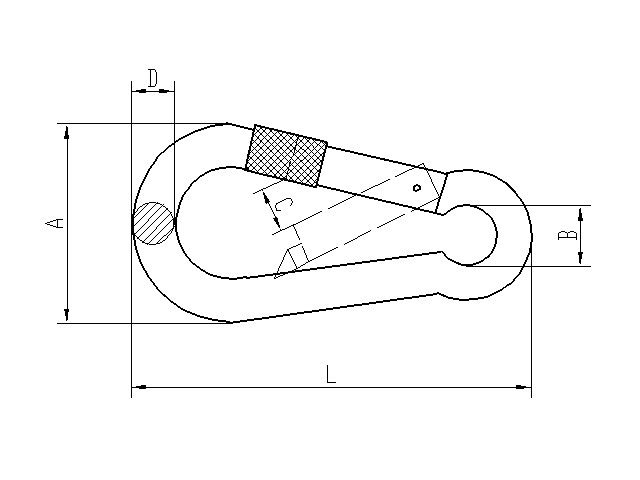

Stock no.	Size mm	A mm	B mm	C mm	D mm	L mm	SWL lbs	Net weight kg/100pcs
HS2070201	5x50	25	8	6	5	50	150	2.0
HS2070202	6x60	30	9	7	6	60	250	3.0
HS2070203	7x70	35	10	7.5	7	70	320	4.4
HS2070204	8x80	40	10	8.5	8	80	400	6.8
HS2070205	9x90	45	12	9	9	90	500	9.6
HS2070206	10x100	50	15	10	10	100	650	12.8
HS2070207	11x120	57	17	16	11	120	700	29.1
HS2070208	12x140	67	20	18	12	140	800	25.5
HS2070209	13x160	74	22	23	13	160	1200	36.6
HS2070210	14x180	86	22	29	14	180	1400	51.0
