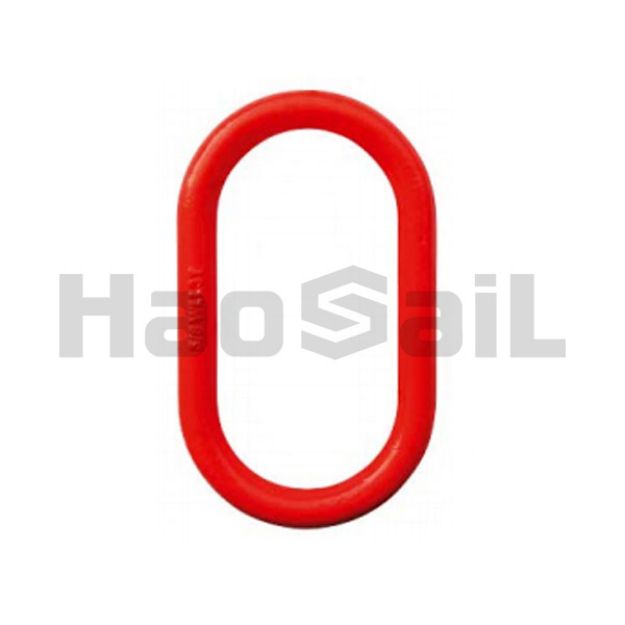

Picture of A342 Forged Alloy Master Link

A342 Forged Alloy Master Link

•Material: Forged supper alloy steel
•100% tested at 2 times of working load limit
•100% MPI for crack detection
•Each batch of products shall be sampled for breaking load test
•For chain sling：Minimum breaking load is 4 times of WLL
•For wire rope sling：Minimum breaking load is 5 times of WLL
SKU: 1.02.01

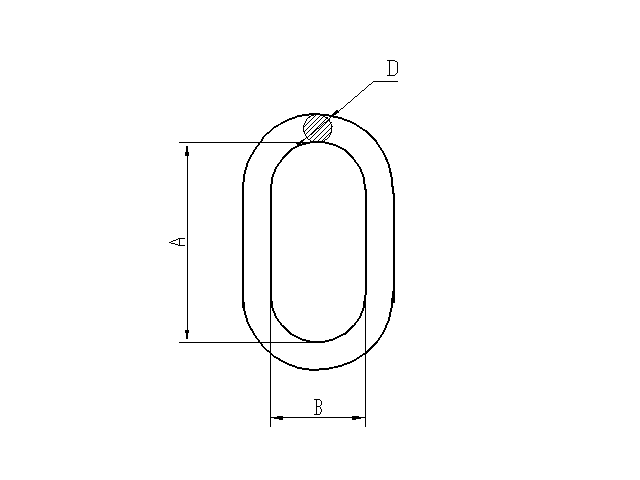

A342 Forged Alloy Master Link
Stock no.Size
(in)		Weight
(kg)		American chain
(in)		A chain of
work load
(t)		Two chain
working load
(the angle 0-45°)(t)		Rope working load
(t)		A
(mm)		B
(mm)		D
(mm)		Regular
marking
HS10201011/20.36 1/41.52.123.4127±663.5±513±1WLL2.8T
HS10201011/20.36 5/1622.83.4127±663.5±513±1WLL2.8T
HS10201025/80.70 5/1622.84152±676±516±1WLL3.15T
HS10201025/80.70 3/83.15-4152±676±516±1WLL3.15T
HS10201033/40.93 3/83.154.255.6140±670±519±1WLL4.25T
HS10201047/81.50 3/83.154.256.9160±690±522±1WLL5.3T
HS10201047/81.50 1/25.3-6.9160±690±522±1WLL5.3T
HS102010512.10 1/25.37.511.8178±689±525±1WLL11.2T
HS102010512.10 5/8811.211.8178±689±525±1WLL11.2T
HS10201061-1/44.24 5/8811.217.7222±7111±632+1-2WLL16T
HS10201061-1/44.24 3/411.21617.7222±7111±632+1-2WLL16T
HS10201071-1/27.17 3/411.21627.7267±7135±638+1-2WLL21.2T
HS10201071-1/27.17 7/81521.227.7267±7135±638+1-2WLL21.2T
HS10201081-3/411.55 7/81521.238.5305±10152±645+1-2WLL21.2T
HS10201081-3/411.55 121.2-38.5305±10152±645+1-2WLL21.2T
HS1020109217.20 121.23046.5355±10178±651+1-2WLL31.5T
HS1020109217.20 1 1/431.5-46.5355±10178±651+1-2WLL31.5T
HS10201102-1/424.50 1 1/431.54564.9406±10203±757+1-2WLL45T
HS10201112-1/230.90 ---72.6406±10203±763.5±3WLL72.6T
HS10201122-3/439.50 ---98.4406±10241±770±3WLL98.4T
HS1020113350.34 ---103457±15228±776±3WLL103T
HS10201143-1/465.68 ---119508±15254±782.5±3WLL119T
HS10201153-1/290.24 ---126508±15254±789±3WLL126T
HS10201163-3/489.27 ---152508±15254±795±3WLL152T
HS10201174103.43 ---169508±15254±7102±3WLL159T
HS10201184-1/4137.00 ---160610±15305±7108±3WLL160T
HS10201194-1/2156.00 ---163711±18356±7114±3WLL163T
HS10201204-3/4198.00 ---176711±18356±7121±4WLL176T
HS10201215234.00 ---179762±20381±10127±4WLL179T
