322C/322A Swivel Hook with Latch

•Material: Alloy steel
•Max proof load is 2.5 times of the working load limit
•Min breaking load is 4 times of the working load limit
•Power coating or electric galvanizing are available as per customer’s request
•1set of metal latch contains of: latch+screw+nut+spring(galvanized).

SKU: 1.05.06

Overview
Contact Us

322C/322A Swivel Hook with Latch

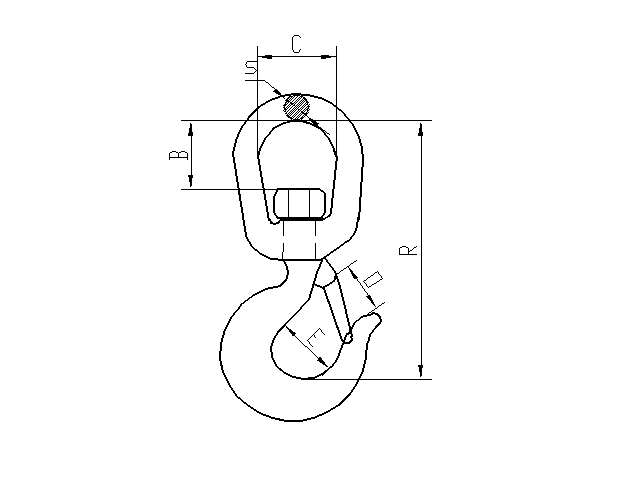

Stock no.	WLL(t)		Dimensions(in)
Stock no.	322C	322A	B	C	E	R	S	O
HS1050601	3/4	1	1-5/16	1-1/4	1-5/16	4-15/32	13/16	7/8
HS1050602	1	1-1/2	1-5/16	1-1/2	1-1/32	5-9/32	13/16	31/32
HS1050603	1-1/2	2	1-5/8	1-3/4	1-1/16	6-1/64	27/32	1
HS1050604	2	3	1-9/16	1-3/4	1-7/32	6-3/8	1-3/16	1-1/8
HS1050605	3	4-1/2	1-3/4	2	1-1/2	7-13/32	1-3/8	1-11/32
HS1050606	5	7	5-5/16	2-1/2	1-7/8	9-19/32	1-25/32	1-11/16
HS1050607	7-1/2	11	2-3/8	2-3/4	2-1/4	11-1/8	2-1/8	2-1/16
